Strand Pelletizing Production Line

Strand Pelletizing Production Line

INTRODUCTION:

The processing granulation is usually used in plastic compounding and recycling. Concerning the plastic compounding, it means that the mixing of two or more components in an extruder produce a new product. During compounding, the virgin resins will be shaped with certain desired character by adding ingredients. And the plastic with new character will be extruded and granulated into pellets for storage and further application. As for the plastic granulating line, the processed post-industry and post-customer plastic will be melted, extruded and granulated into pellets, which are convenient for storage and further application. In general, the crushed or shredder plastic flakes which have been washed and cleaned have bad feeding efficiency for extruding, so the plastic granulating line for recycling is necessary.

STRUCTURE OF THE GRANULATING LINE MADE BY LANGBO:

The strand cutting pelletizing line has a relative stable structure. According to the individual application, each component may have different importance for the whole pelletizing line. This needs a further discussion around the customized structure solution. The basic structure and their function of the whole line are listed as following.

Feed system: dossiers and feeds the resin and ingredients into the extruder for mixing and melting.

Extruder: mixes and melts all the materials, which have been fed into the extruder.

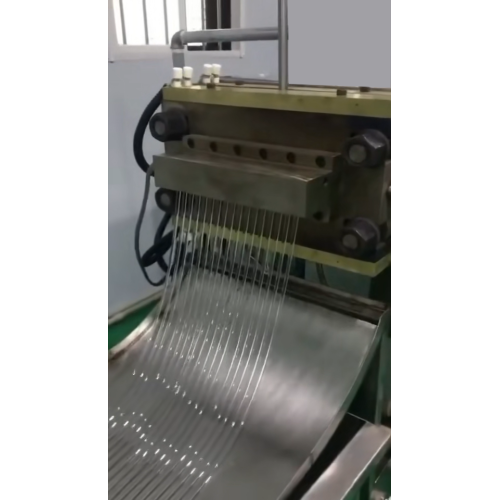

Strand die: shapes the molten polymer into strand.

Water bath: cools down the extruded strands into solid state.

Air knife/ Air stripper: removes the moisture on strand surface.

Pelletizer: chops the strand to defined length.

Classifier: filters out the over-and under-sized pellets and collects the pellets, which fit the pellets specification.

Conveys system: transports the first quality pellets for packaging.



CHARACTERS OF STRAND CUTTING GRANULATING LINES:

Because of the simple structure of the plastic granulating line, the equipment investment is lower in comparison to other pelletizing solutions such as water ring granulating line and under water granulating line. The low equipment price with relative high performance is a significant advantage.

The simple structure can also provide customer a easier maintenance operation and lower repair cost.

The concept for extrusion, cooling and pelletizing is relative numerous, the single screw granulating line can fit almost all kinds of polymer.

However, the potential of strand broke could influence the production capacity and require relatively more human resource for production.

The automation grad for the whole process is relatively lower than other granulating method.
