Wholesale Plastic PVC Profile Extrusion Production Line

Get Latest Price

Transportation:: Ocean, Land

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C,T/T,D/P,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean,Land
Port:	Shanghai

Product Description

Wholesale Plastic PVC Profile Extrusion Production Line

PLASTIC PROFILE EXTRUSION LINE

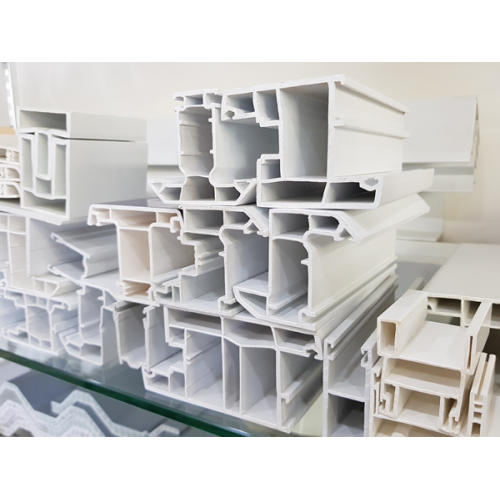

This line is mainly used for production of PVC profiles, which is widely used as door panel, window frame and ceiling and so on.

FEATURE

Conical twin-screw extruder, suitable for processing PVC powder raw materials.

Changing the moulds to produce several kinds of different PVC profiles.

Auxiliary machine: Mixer unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker.

1 Pvc Windows Doors Production Line Jpg

ADVANTAGES

Mainly used to produce the PVC profile for windows, plastic decorative plates and PVC foam profiles.

Use frequency conversion for speed regulation.

Has super-taper twin-screw extruder with temperature controlling instrument in the screw core.

Saves power by 30% - 40%.

The rigid gear surface of the reducer can be operated continuously for a long time without trouble.

Operation and mold changing are smooth and steady.

Long usage life.

Produce steel plastic profiles by changing the wood imitation foaming profile mold.

Profile Guide Mold Png

PVC PROFILE EXTRUSION MACHINE LINE APPLICATION：

1. Particularly designed conical twin screw extruder for PVC powder raw materials.

2. Adapted to different moulds for different Pvc profiles.

3. Equipped with special designed vaccum calibration platform, haul-off and cutter, stacker.

4. Adopted full aspects efficient water mist cooling on profile.

2 Pvc Corner Jpg

SPECIFICATION

The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.

Model

SJZ45

SJZ51

SJZ65

SJZ80

SJZ92

Screw diameter (mm)

45/100

51/105

65/132

80/156

92/188

Screw rotation speed (r/min)

4-45.5

1-30

1-34.7

1-36.9

1-32.9

Effective length of screw (mm)

1000

1050

1430

1800

2520

Main motor power (kw)

15

22

37

55

90

Barrel heating power (kw)

12

18

24

36

48

Capacity (kg/h)

95

110

250

380

520

Central height (mm)

1000

Net Weight(kg)

3000

3200

5000

6500

7500
