Good performance PVC Profile corner production

Get Latest Price

Transportation:: Ocean, Land

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C,T/T,D/P,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean,Land
Port:	Shanghai

Product Description

Good performance PVC Profile corner production

PVC PROFILE EXTRUSION MACHINE LINE DESCRIPTION:

Our highly qualified team of engineers, operators and technician has always been searching for high technology so that we can meet customers various requirements.

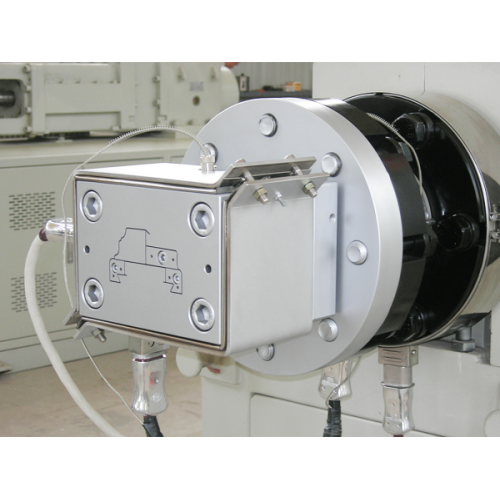

This kind of equipment can be used to produce profile for windows , gutter, shutters, wall panels, decorative profiles etc. One production line includes a main extruder, extrusion tool, calibrating system, calibrating table, profile caterpillar Haul-off, Saw, stacking unit.

1 Pvc Windows Doors Production Line Jpg

PVC PROFILE EXTRUSION MACHINE LINE DESCRIPTION:

PVC is being extensively used to produce profile for windows, technical profiles and profile for doors due to excellent weathering resistance, impact strength and durability. PVC gives outstanding insulation for heat and noise, and has a very low maintenance cost.

LANGBO MACHINERY offers the lead-based and lead-free type of stabilizers that impart excellent heat and UV resistance to PVC profiles. LANGBO MACHINERY stabilizer system provides higher mechanical strength, excellent whiteness and color stability. The one pack system is specially designed with excellent quality additives to ensure smooth extrusion with good luster and finish consistently.

2 Pvc Corner Jpg

FEATURES:

High flexibility in raw material combinations

Gentle and homogeneous plastification

Barrel with air cooling system

AC motors for low energy consumption

Control panel with color touch screen

Pvc Rain Gutter1 Png

SPECIFICATION

The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.

Model

SJZ45

SJZ51

SJZ65

SJZ80

SJZ92

Screw diameter (mm)

45/100

51/105

65/132

80/156

92/188

Screw rotation speed (r/min)

4-45.5

1-30

1-34.7

1-36.9

1-32.9

Effective length of screw (mm)

1000

1050

1430

1800

2520

Main motor power (kw)

15

22

37

55

90

Barrel heating power (kw)

12

18

24

36

48

Capacity (kg/h)

95

110

250

380

520

Central height (mm)

1000

Net Weight(kg)

3000

3200

5000

6500

7500

Send your message to this supplier

* From:
* To:

Ms. Emma LIU
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Pvc Profile Extrusion Production , PVC Corner Bead Production Line , PVC Door and Panel

Model	SJZ45	SJZ51	SJZ65	SJZ80	SJZ92
Screw diameter (mm)	45/100	51/105	65/132	80/156	92/188
Screw rotation speed (r/min)	4-45.5	1-30	1-34.7	1-36.9	1-32.9
Effective length of screw (mm)	1000	1050	1430	1800	2520
Main motor power (kw)	15	22	37	55	90
Barrel heating power (kw)	12	18	24	36	48
Capacity (kg/h)	95	110	250	380	520
Central height (mm)	1000
Net Weight(kg)	3000	3200	5000	6500	7500
