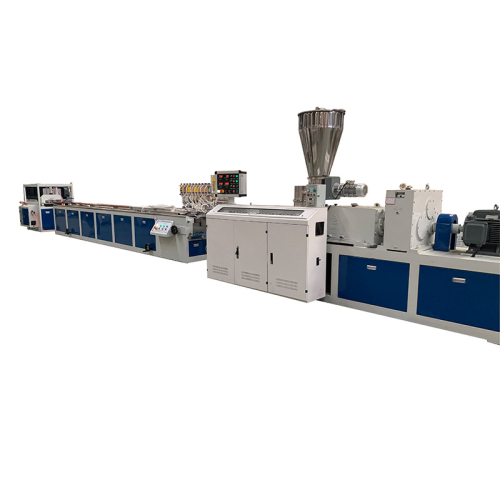

PVC Profile Manufacturing Making production Line
PVC PROFILE EXTRUSION MACHINE LINE DESCRIPTION:
LANGBO MACHINERY provides PVC profile extrusion line mainly composed by conical twin screw extruder, vacuum calibration table, haul off machine, cutting machine, stacker. Plastic PVC profile is made by several different moulds. PVC profile extrusion machine can produce various UPVC profile. Such as: PVC window door profile, PVC door panel, PVC window sill board, cabinet door board, curtain box and different decorative PVC profiles.
PVC PROFILE EXTRUSION MACHINE LINE APPLICATION：
1. Particularly designed conical twin screw extruder for PVC powder raw materials.
2. Adapted to different moulds for different Pvc profiles.
3. Equipped with special designed vaccum calibration platform, haul-off and cutter, stacker.
4. Adopted full aspects efficient water mist cooling on profile.
FEATURES:
High flexibility in raw material combinations
Gentle and homogeneous plastification
Barrel with air cooling system
AC motors for low energy consumption
Control panel with color touch screen
SPECIFICATION
Model
SJZ45
SJZ51
SJZ65
SJZ80
SJZ92
Screw diameter (mm)
45/100
51/105
65/132
80/156
92/188
Screw rotation speed (r/min)
4-45.5
1-30
1-34.7
1-36.9
1-32.9
Effective length of screw (mm)
1000
1050
1430
1800
2520
Main motor power (kw)
15
22
37
55
90
Barrel heating power (kw)
12
18
24
36
48
Capacity (kg/h)
95
110
250
380
520
Central height (mm)
1000
Net Weight(kg)
3000
3200
5000
6500
7500
