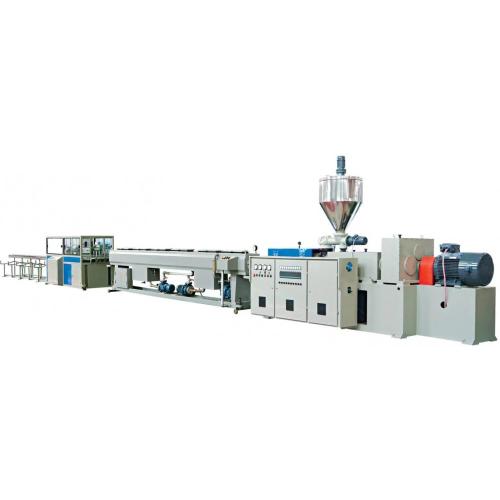

High Efficiency 110mm to 315mm Pipe Extrusion Line
PVC PIPE EXTRUSION LINE:
With the large demand of plastic pipes and increasingly cost of energy and raw material, LANGBO MACHINERY has continuously being optimizing its pipe extrusion solutions during recent years. We offer solutions tailored to customer specifications in all fields of extrusion technology. Our machine concept is based on economical high performance extrusion.Our machine achieves a first class balance between high output and energy effectiveness. We can produce the PVC pipe with diameter from 16mm to 630mm. If you want a customized production solution, please contact us to get more detailed information.
SPECIFICATIONS:
Model
Pipe diameter
Extruder
Extruder power
Capacity
LB-32A
16-32(four)
SJ65/132
37AC
250
LB-32B
16-32(four)
SJ80/156
55AC
350
LB-50A
16-50
SJ45/90
15AC
100
LB-50B
16-50(double)
SJ51/105
18.5AC
150
LB-50C
16-50(double)
SJ65/132
37AC
250
LB-63A
16-63
SJ51/105
18.5AC
150
LB-63B
16-63(double)
SJ65/132
37AC
250
LB-160
50-160
SJ65/132
37AC
250
LB-250
63-250
SJ65/132
37AC
250
LB-315
110-315
SJ80/156
55AC
350
LB-630
315-630
SJ92/188
110DC
800
LB-800
560-800
SJ105/216
160DC
1100
PRODUCT FEATURES
By working synchronous with pipeline, without any human intervention, machine can take pipes from the line and then make belling.
Pipe heating degree and blowing pressure can be adjusted.
With the wide selection feature on touch screen, wastage of pipe can be prevented.
By using internal PLC system, machine can work independently from pipe
line.
Corrosion Resistant
With self-extinguishing and flame retardant;
Excellent in anti-aging character
The PVC pipe is light, easy to flaring, bonding, bending, welding.
Installation workload and Processing cost are lower than metal pipe
Good electrical properties of resistance
Recycled and Environment-friendly.
