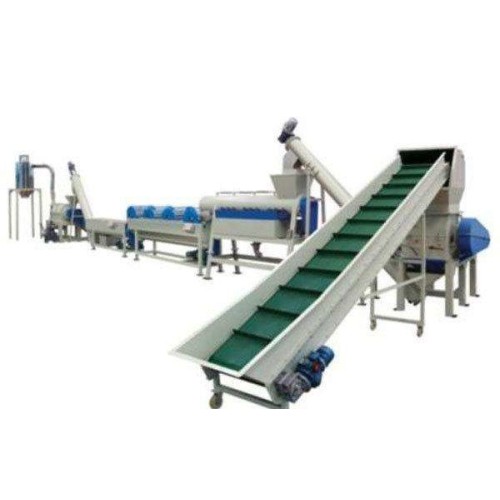

PET Bottle Complete Recycling Line
RECYCLING- BEGIN WITH THE END PRODUCT
As we all know, the plastic recycling takes
an important role of the environment circle economy. It could be trend for future
for plastic industry. Langbo Machinery manufactured the plastic recycling
equipment for more than 15 years. We will provide you the professional
solutions for your recycling ideas and comprehensive training and service, to achieve
a successful win-win cooperation.

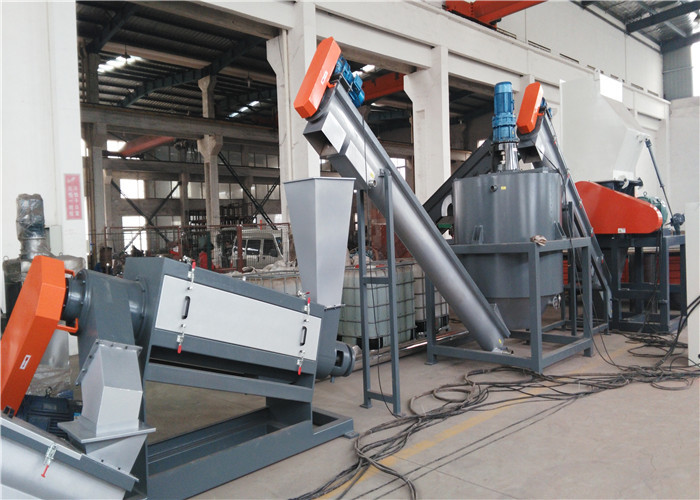

The PET bottle recycling plant takes dirty bottles and transforms them into clean PET flakes. This is an export commodity which can be sold and used for many creative applications. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 100kg to 3000kg per hour.
FEATURES:
1. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles.
2. Friendly control system (PLC integrated & separated control on each machine) and touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 and touch screen panel, easy for operation, monitor and emergency stop.
4. The whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
RECYCLING PROCESS
Generally the complete Recycling line consists of steps Crushing, Washing, Pelletizing. The r-PET granulates are ready for next forming processing.
For each step different machines work together and achieve the final target. Here the Machines and their function are listed.
No
Item
Qty
Remark
1
Bale breaker
1 set
Cut and break packaged PET
bottles
2
Belt conveyor
1 set
Transferring bottles
3
Screening machine
1 stet
Filtering out the sand, dirty,
impurity
4
Belt conveyor
1 set
Transferring bottles
5
Label remover
1 set
Removing label from surface of
bottle
Label removing efficiency:90%-95%
6
sorting table
1 set
Sorting different plastics manually
or automatic
7
Metal detector
1 set
Detecting metal, aluminum,
Stainless steel or other metal
automatically
8
Belt conveyor
1 set
Transferring bottles
9
Wet crusher
1 set
With water, the material of the
blade adopt SKD-II or 9CrSi
10
Screw feeder
1set
Transferring the crushed PET
flakes
11
Twin screw floating washer
1 set
Washing and separate PP
caps/label according
to different specific density
12
Screw feeder
1 set
Transferring flakes
13
Friction washer
1 set
Cleaning with High friction
efficiency by high
Speed
14
Twin screw floating washer
1 set
Washing and separate PP
caps/label according to
different specific gravity
15
Dewatering machine
1 set
High dewatering efficiency by
high speed, adopt
Germany technology, water content
5%
16
Label separator
1 set
Separating leftover label from
pet flakes
17
Drying system and Storage
hopper
1 set
Drying by electric, water
content ≤2%, PET Flakes for extrusion
18
Pelletizing Line
1 set
rPET Granulates
18
Electrical control cabinet
1 set
Adopts ABB , SIEMENS and
OMRON as main electric
component.
Annotation:
According to the recycling
Requirement such as the cleanness and impurity of the PET flakes, the
capacity of the recycling line, the equipment can be increased or decreased.
TURN-KEY PROJECT SERVICE:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one-year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
