PET Bottle Complete Recycling Line
- Transportation:
- Ocean, Land
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | JIANGSU, CHINA |
|---|---|
| Payment Type: | T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Transportation: | Ocean,Land |
| Port: | Shanghai |

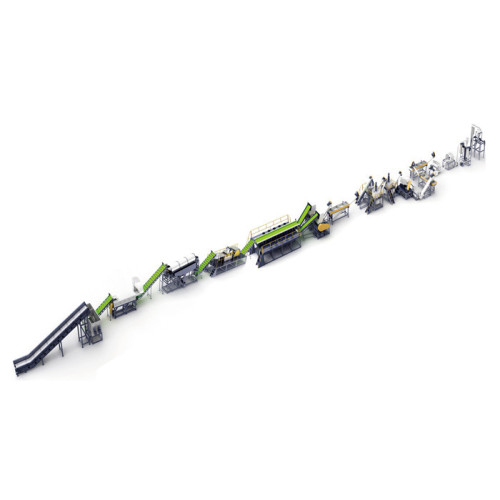

PET Bottle Complete Recycling Line
RECYCLING- BEGIN WITH THE END PRODUCT
As we all know, the plastic recycling takes
an important role of the environment circle economy. It could be trend for future
for plastic industry. Langbo Machinery manufactured the plastic recycling
equipment for more than 15 years. We will provide you the professional
solutions for your recycling ideas and comprehensive training and service, to achieve
a successful win-win cooperation.
The plastic PET is usually used for beverage bottles, food containers or industrial film. For recycling these waste PET products will be crushed, washed and dried to be cleaned PET Flakes as middle status. Then the flakes will be transported into the extruder and granulated for further shaping for next plastic life cycle. The recycled PET material will be classified and used for yarn, fabric, fiber, packaging material even the new bottles.
RECYCLING PROCESS
Generally the complete Recycling line consists of steps Crushing, Washing, Pelletizing. The rPET granulates are ready for next forming processing.
For each step different machines work together and achieve the final target. Here the Machines and their function are listed.
No
Item
Qty
Remark
1
Bale breaker
1 set
Cut and break packaged PET
bottles
2
Belt conveyor
1 set
Transferring bottles
3
Screening machine
1 stet
Filtering out the sand, dirty,
impurity
4
Belt conveyor
1 set
Transferring bottles
5
Label remover
1 set
Removing label from surface of
bottle
Label removing efficiency:90%-95%
6
sorting table
1 set
Sorting different plastics manually
or automatic
7
Metal detector
1 set
Detecting metal, aluminum,
Stainless steel or other metal
automatically
8
Belt conveyor
1 set
Transferring bottles
9
Wet crusher
1 set
With water, the material of the
blade adopt SKD-II or 9CrSi
10
Screw feeder
1set
Transferring the crushed PET
flakes
11
Twin screw floating washer
1 set
Washing and separate PP
caps/label according
to different specific density
12
Screw feeder
1 set
Transferring flakes
13
Friction washer
1 set
Cleaning with High friction
efficiency by high
Speed
14
Twin screw floating washer
1 set
Washing and separate PP
caps/label according to
different specific gravity
15
Dewatering machine
1 set
High dewatering efficiency by
high speed, adopt
Germany technology, water content
5%
16
Label separator
1 set
Separating leftover label from
pet flakes
17
Drying system and Storage
hopper
1 set
Drying by electric, water
content ≤2%, PET Flakes for extrusion
18
Pelletizing Line
1 set
rPET Granulates
18
Electrical control cabinet
1 set
Adopts ABB , SIEMENS and
OMRON as main electric
component.
Annotation:
According to the recycling
Requirement such as the cleanness and impurity of the PET flakes, the
capacity of the recycling line, the equipment can be increased or decreased.
OUR SERVICE
- Reliable Equipment quality
We have been focusing on the recycling equipment for almost 20 years, we will provide you the professional recycling plan and delivery the reliable and customized equipment.
-
Onsite installation and staff training
we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
- Safety After-Sale service
Except one-year quality guarantee, we will provide quick response after-sale service for all the equipment life.
