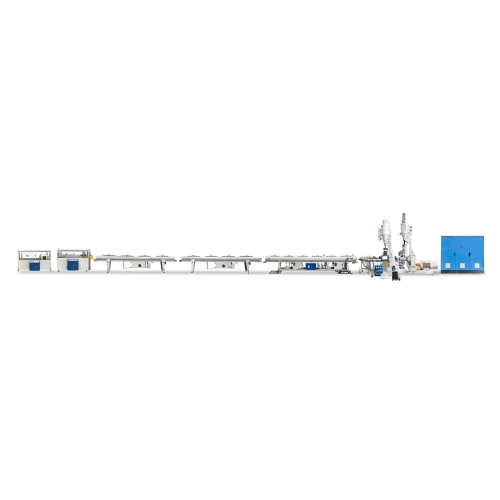

16-250mm HDPE Pipe Extrusion Line
PRODUCT ADVANTAGE
The extruder embraces huge L/D proportion screw and extraordinary extremely durable magnet simultaneous servo engine for extruder to acknowledge high creation and energy saving.
The pass on body embraces free twisting component of each layer to guarantee the consistency, and the exhaust system guarantees the steady liquefy temperature under high creation and decreases the cooling length.
The pulling embraces servo control to guarantee stable creation in huge speed range.
Furnished with online straight line, loop programmed pressing system, productive and work saving.
Creation information procurement and examination framework can be chosen to acknowledge straightforward creation the executives.
Take on swarfless cutting instrument, clear and exact fixed length, delightful entry point.
EXTRUDER
The extruder embraces expulsion committed extremely durable magnet simultaneous servo engine, which saves establishment space and is particularly appropriate for unified arrangement of numerous extruders.
Low dissolve temperature configuration guarantees great plasticizing impact.
Proficient transport correspondence control of the entire line can keep away from the impact of impedance on each extruder, pulling and cutting transmission, and give accommodation to data assortment.
MOULD DESIGN
Die head adopts spiral basket structure, simple maintenance, accurate thickness of each layer.
VACUUM TANK
All vacuum of the entire line embraces negative tension shut circle programmed change of vacuum degree, stable strain, work on the nature of line creation, low commotion, energy saving 30 ~ 60%.
HAUL-OFF UNIT
The super durable magnet coordinated engine is taken on in the pulling machine to guarantee a steady speed guideline scope of in excess of multiple times, in order to understand the steady pulling of line.
CUTTER
Single or twofold edge swarfless cutting, stable cutting, can cut slender line, particularly thick line.
Electric cam control cutting truck, fixed length definitively, cutting stable.
TECHNICAL DATA
|
Model |
LSP-63PE |
LSP-110PE |
LSP-160PE |
LSP-250PE |
|
PIPE RANGE(mm) |
Ø16-Ø63 |
Ø20-Ø110 |
Ø40-Ø160 |
Ø50-Ø250 |
|
MAX OUTPUT(kg/h) |
300 |
300 |
600 |
600 |
|
MAX HAULING SPEED(m/min) |
25 |
14 |
8 |
8 |
|
CO-EXTRUSION |
1 - 3 Layer |
1 - 3 Layer |
1 - 3 Layer |
6.5 |
