High Quality Hdpe Cable Casing Pipe

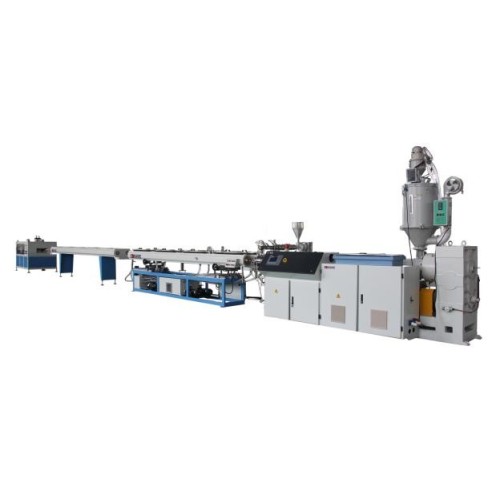

PE TURNKEY PIPE PRODUCTION LINE
LANGBO machinery offers complete turnkey production lines for PE pipe. We offer a wide range of single screw extruders in various sizes and capacities. Our screw design is chosen based on our clients material combination ensuring homogeneous mixture, better plastification and efficiency. Our production lines come in a wide range of configurations capable of producing PE pipes from 16mm all the way up to 110mm. We offer complete sets of tooling for various pipe classes required in the industry.
PE PIPE PRODUCTION SPECIFICATIONS:
Model
Pipe diameter
Extruder
Extruder power
Capacity
LB-63
20-63
SJ65/33
55AC
150
LB-110
20-110
SJ65/33
55AC
150
LB-160
75-160
SJ75/33
90AC
280
LB-250
90-250
SJ75/33
110DC
350
LB-315
110-315
SJ90/33
160DC
450
LB-450
160-450
SJ90/33
160DC
450
LB-630
315-630
SJ120/33
280DC
850
LB-800
500-800
SJ150/33
315DC
1100
LB-1200
710-1200
SJ150/34
400DC
1350
WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?
The turnkey PE pipe production line comes with all the necessary machinery you need to start manufacturing high quality PE pipe. From the single screw extruders comprised of quality components to a high speed servo powered puller machines we offer you everything you need to become a successful pipe manufacturer.

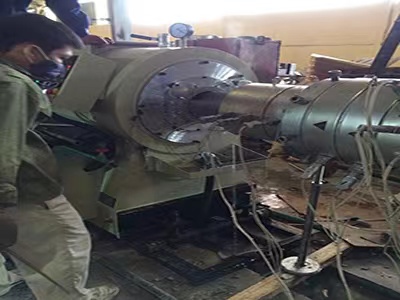

Single Screw Extruder Machine
The pipe extruder machine, the most important part of any production line; it heats, mixes, and extrudes fesh pipe.
Vacuum & Cooling Tank
The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.
Haul Off (Puller) Machine
A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.
Cutter Machine
The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.
Accumulator Machine
An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.
Coiler Machine
The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).
Optional
Extrusion Die Heads
An extrusion die head can be added to your existing extruder machine to produce 3 layer pipe with a recycled core, allowing you to save money on raw materials. DRTS always keeps at the forefront of pipe production introducing new technologies that are geared towards our customers benefit. Our technology for the production of 3 layer PE pipe has been a great success among our clients. All DRTS machinery can be also supplied and purchased as a standalone unit providing you with the ability to upgrade machines in your existing production lines.
