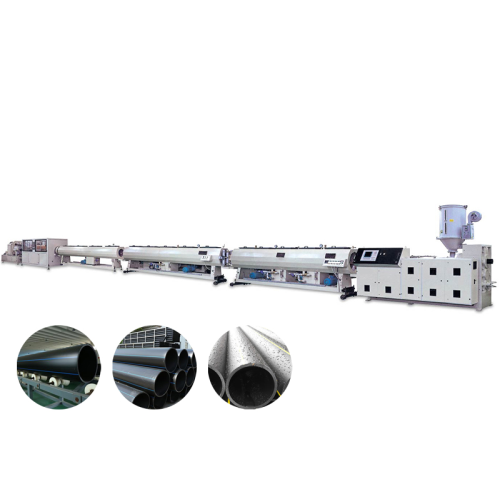

20mm-110mm PE Pipe Production Line
COMPONENTS FOR 20mm-110mm PE PIPE PRODUCTION LINE
Single Screw Extruder
Material Loading: Vacuum Loader
Size: SJ75/33
Screw and barrel are in good quality.
Motor: Siemens
Heating method: Electric aluminum cast heating
Electric contactor: Siemens
Frequency inverter: ABB
Extrusion Die
Pipe Product Diameter:20mm-110mm
Sizing unit:20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm
Sizing unit material: Copper alloy steel
Vacuum Calibration and Cooling Tank
Effective Tank Length: 6 meters (based on pipe diameter and wall thickness)
Raw material of tank: SUS304 stainless steel
with Vacuum pump and water pump
Water Cooling Tank
Effective Tank length: 6 meters
Raw material of Tank: SUS304 stainless steel
With water pump
Haul-off Machine
Effective traction length:1.8meter
Motor power:4KW
Traction speed:2-6m/min
Speed control: by ABB inverter
Cutting Machine
Cutting method: Non-dust cutting
Cutting knife raw material: alloy steel
Cutting range:20mm-160mm
PE PIPE PRODUCTION SPECIFICATIONS:
|
Model |
Pipe diameter |
Extruder |
Extruder power |
Capacity |
|
LB-63 |
20-63 |
SJ65/33 |
55AC |
150 |
|
LB-110 |
20-110 |
SJ65/33 |
55AC |
150 |
|
LB-160 |
75-160 |
SJ75/33 |
90AC |
280 |
|
LB-250 |
90-250 |
SJ75/33 |
110DC |
350 |
|
LB-315 |
110-315 |
SJ90/33 |
160DC |
450 |
|
LB-450 |
160-450 |
SJ90/33 |
160DC |
450 |
|
LB-630 |
315-630 |
SJ120/33 |
280DC |
850 |
|
LB-800 |
500-800 |
SJ150/33 |
315DC |
1100 |
|
LB-1200 |
710-1200 |
SJ150/34 |
400DC |
1350 |
THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:
Single screw extruder
Co-extruder: manufacturing marking line on pipe or multilayer of pipes
Die head
Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
Cooling tank: due to diameter, the numbers of cooling tank canbe one, two or three
Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars
Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter
Coiler/ Tipping chute
PROCESSING FLOW
Raw material--Loader--hopper dryer--extruder--mould--vacuum tank--cooling tank--haul off machine--cutting machine--stack rock(winder)
