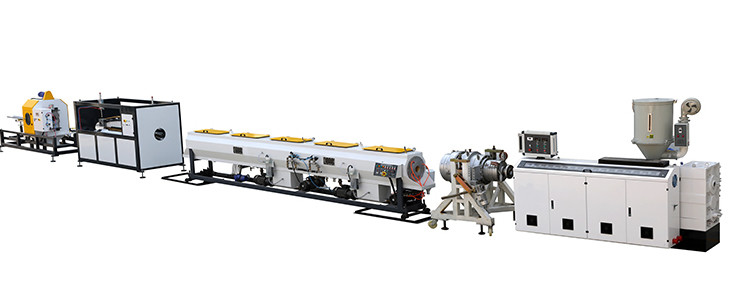

PE Pipe Making Line
APPLICATION:
In conditions of different pressure classes under the working circumstances, the PE Pipes can be applied in plenty of fields including petrol gas, agriculture, architecture, telecom communication ans so on. As we all know, the PE Pipes with small diameter are widely used in the telecom communication field. The PE Pipes are light and efficient. Considering the comprehensive conditions, PE pipes are the optimization of existing systems in some areas. 20mm-110mm HDPE and PP water pipe production making machine is the most suitable equipment for making PP,PE pipes with various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc.
COMPONENTS INTRODUCTION:
Single screw Extruder
Screw and Barrel produced by professional manufacture
Siemens Motor for extrusion for reliable continuous production
Cast aluminum heater for long lifetime
Siemens electrical contractor in control cabinet
ABB Frequency inverter for speed control
Extrusion Die
Optimized design for smooth molten polymer flowing
Precision processing and surface quality
Low extrusion energy consumption
Vacuum Calibration Tank & Cooling Tank
Intelligent control of water temperature
Automatic water cycling system
Adjustable vacuum condition
Copper calibrator for exact pipe diameter
Optimized layout of spraying nozzles
Stainless steel tank body
Energy efficiency vacuum effect in calibration tank
Haul off Unit
Caterpillar and Belt pullert for different application
Synchronized control between extruder and haul off available.
Pipe Wall thickness monitor optional
Haul-off speed controlled by Frequency inverter
Haul-off unit can be easily operated on main control panel
Cutter Unit
Precises cutting length
Different cutting concept for applications
Control system
Worldwide quality for electrical components
HMI panel optional
Optimized program and HMI Layout
Optional Device
Laser/Ink Printer
Automatic Stacker
Dosing unit
Pipe Wall Thickness monitor
PRODUCTION LINE COMPONENTS:
| No. | Machine name | PCS |
| 1. | SJ65/30Single screw extruder | 1 |
| 2. | Molds (25-32-40-50mm ) | 1 |
| 3. | Vacuum forming box | 1 |
| 4. | Water cooling tank | 1 |
| 5. | Double haul-off and cutting machine | 1 |
| 6. | Stacker | 1 |
| 7. | Hopper Dryer | 1 |
| 8. | Automatic Loader | 1 |
