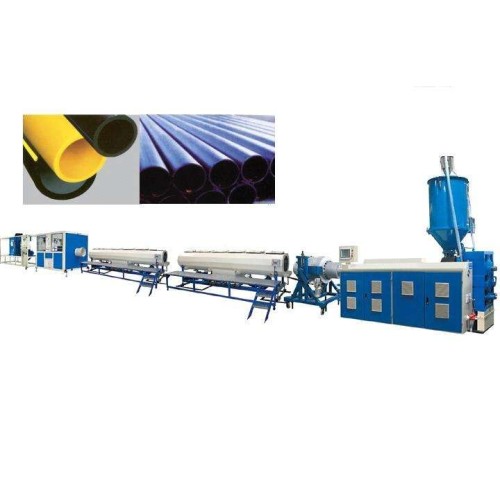

PE Pipe Production Line with Diameter 20mm-110mm

PE Pipe Production Line with Diameter 20mm-110mm

APPLICATIONS OF PE PIPES

In conditions of different pressure classes under the working circumstances, the PE Pipes can be applied in plenty of fields including petrol gas, agriculture, architecture, telecom communication ans so on. As we all know, the PE Pipes with small diameter are widely used in the telecom communication field. The PE Pipes are light and efficient. Considering the comprehensive conditions, PE pipes are the optimisation of existing systems in some areas. 20mm-110mm HDPE and PP water pipe production making machine is the most suitable equipment for making PP,PE pipes with various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc.

THE INTRODUCTION OF COMPONENTS

Machine Parts:

Name: SJ75/33 Single Screw Extruder(with vacuum loader)

Brand: LB

Original: CHINA

1)Screw and barrel are all from Zhoushan,with good quality.

2)Motor:Siemens

3)Heating method:Electric aluminum cast heating

4)Electric contactor:Siemens

5)Frequency inverter:ABB

Machine Parts

Name: Mold Head
Brand: LB
Original: CHINA
1)Pipe diameter:20mm-110mm
2)Sizing unit:20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm
3)Sizing unit material:Copper alloy steel

Machine Parts

Name: Vacuum Calibration and Cooling Tank

Brand: LB

Original: CHINA

1)Tank effective length:6 meters

2)Tank Raw material:SUS304

3)with Vacuum pump and water pump

Machine Parts

Name: Water Cooling Tank
Brand:LB
Original: CHINA
1)Tank effective length:6 meters
2)Tank Raw material:#304 stainless steel

3)With water pump

Machine Parts

Name: Hual off Machine

Brand: LB

Original: China
1)Effective traction length:1.8meter
2)Motor power:4KW
3)Traction speed:2-6m/min
4)Speed control: by ABB inverter

CONSIST OF THE FULL PRODUCTION LINE:

The first step of pipe production is the preparation of raw material. Customers can mix the PVC powder with other additives by themself. The mixture will be fed into extruder. The material will be plasticized in the extruder and then be extruded into the mould. The material is shaped by mould and goes out with the pipe looking. The pipe extruded from the mould is hot and soft. The pipe with unstable shape will be calibrated and cooled by vacuum sleeve in the vacuum calibration tank. And then the pipe goes into the cooling tank for a further cooling. Haul off unit stands next to the cooling tank and take the pipe away from the extruder. According to the defined length, the pipe will be cut and then packed for transport.

In a word, the whole process can be concluded into a more concise line as following:

raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack.

AFTER-SALE SERVICE& TECHNOLOGY SUPPORT:

• To install products and test products freely for customers.
• To provide the formulas and technologies of relevant products and the information of chemical

materials manufactures.
• To direct technology aspect of relevant use according to customers’ requirements
• To provide technical training for clients’ employees.
• To be responsible for maintenance service, door-to-door service under the necessary circumstance.
