High Efficient Conical Twin Screw Extruder
- Transportation:
- Ocean, Land
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE |
| Transportation: | Ocean,Land |
| Port: | Shanghai |

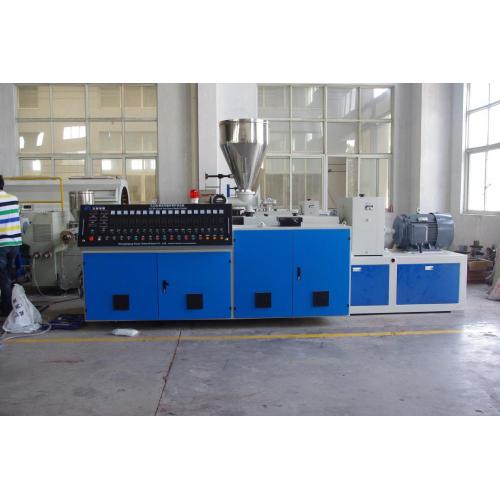

High Efficient Conical twin Screw Extruder
Description of Conical twin screw Extruder:
1. This machine has PLC Control system in the production line ensuring the reliable and stable performance.
2. The downstream equipment includes vacuum calibration, cooling unit, haul-off unit, cutting machine and stacker.
3. The calibration unit is equipped with large forced cooling system so as to deliver great calibration effects.
4. The hall-off unit is caterpillar style. The lower one is fixed and the upper one can be adjusted according to the plate size.
5. The cutting machine is able to set length and provides accurate automatic cutting.
6. The stacker is attached with material cart and rubber protection layer to prevent products from damage, and operate more easily.
Process Flow of PVC extrusion line:
Raw material + additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Raw materials for PVC Pipe and Profile:
Due to the high chemical stability of PVC, the panels have a much longer service life.
PVC + calcium + other additives.
Technical info:
|
|
No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA | |
| 3 | Screw heating | Silicon oil heating | |
| 4 | Barrel heater | Cast aluminum heater | |
| 5 | Barrel has vacuum exhausting system | ||
|
|
|||
| 2 Driving parts | 1 | Main motor | Siemens Brand |
|
|
2 | Gear box | Top brand in China |
|
|
|||
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schneider brand | |
| 3 | Relay | Schneider brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature meter | RKC brand | |
| 6 | Hauling motor | Densen brand | |
| 7 | Hauling gear box | Hard surface gear box | |
| 8 | Vacuum pump | Yvhuang brand | |
| 9 | Water pump | Yvhuang brand | |
| 10 | Cutting motor | Siemens brand | |
| 11 | PLC | Schneider brand | |
|
|
|||
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | ||
|
|
|||
| 5 Protection system |
We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on. |
||
|
For more technical information please contact us by email. |
|||
CONTACT US
We offer solutions tailored to customer specifications in all fields of extrusion technology. If you want a customized production solution, please feel free to contact us getting more detailed information.
