INTRODUCTION OF EXTRUDER

A conical twin-screw extruder is a professional equipment to extrude PVC/ powder mixture composite, which sensitive to processing temperature or shearing force. The conical twin screw can gently process the raw material, with different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

COMPONENTS OF CONICAL TWIN SCREW EXTRUDER

A standard conical twin screw stem extruder is composed of barrel screw, gear transmission system,measurable feeding, vacuum degassing, heating, cooling and electric control components ect. As the most important section of the complete extrusion line, the conical twin screw extruder play an important role of the capacity and the energy consumption of the whole line.

LANGBO MACHINERY has continuously being optimizing its extrusion solutions during recent years. Thanks to our outstanding Extruder, the production line achieves a first class balance with high output and energy effectiveness.

The Conical twin screw Extruder has many variants, which is suitable for different production plan. Generally the components and the function are as followed:

Driving Motor: Provide the power of screw rotation. AC motor is widely used in the extrusion line. For rotation speed adjustment frequency inverter are adopted

Siemens motor combined with ABB/FUJI frequency inverter provides stable torque output and various speed.

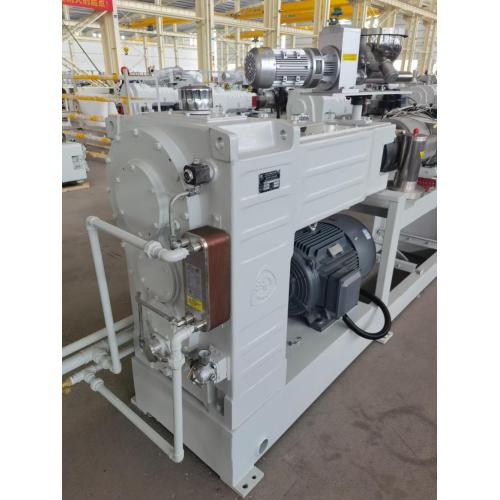

Gearbox: Transfer the torque from motor to screw, meanwhile it adjusts the suitable torque and rotation speed for screw. A reliable gearbox should not only have a nice outlook but also a stable running and long lifetime.

The teeth of gears in the gearbox should be hardened. Forced cooling system guarantees an ideal working conditions of gears. The high-quality bearings can take over the axial force from the screw during the production and ensure a long stable working time. The famous gearbox brand in China will be adopted.

Distribution box: The gearbox adjusts a suitable torque and rotation speed for screw. Distribution box put the output power on the conical twin screw. Because of a direct connection with screw. The axial extruding force plays the significant part for a stable and reliable running. Langbo Extruder adopts bearings, which enjoy the worldwide reputation. And the bearings are also used in the first class extruder manufactures.

Temperature controlling system: Extrusion temperatures for barrel zones are significant parameter for product quality. The reliable control system and executor are necessary.

The electrical temperature control system has mainly applied worldwide famous parts. The multiple alarm system guarantees a stable temperature with a tolerance less than 1 grade. With PID controller a precise and energy efficiency temperature controlling is achieved.

SPECIFICATIONS

Some standard Extruder Models are listed and you can get some basic technical information round the Extruder.

As a manufacture supplier, we are focusing to provide the suitable production solution for our customer.
