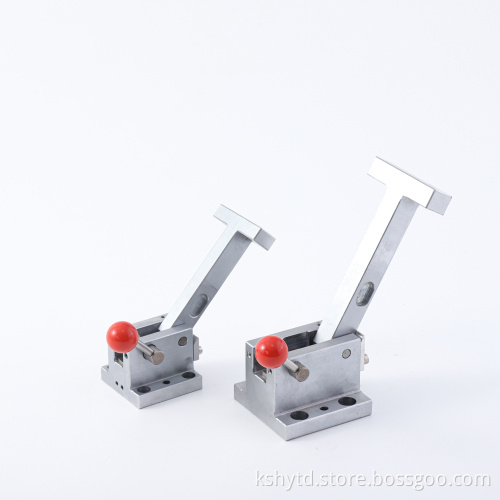

Horizontal Flip Mechanism Standard Parts

Checking Gauge processing technology preparation

Mechanical processing process is one of the technical documents that stipulate the mechanical processing process and operation methods of parts. It is under specific production conditions, the more reasonable technological procedures and operation methods are written into technical documents in accordance with the prescribed form, which are used to guide production and processing after approval.  Mechanical processing process rules generally include the following contents: the process route of workpiece processing, the specific content of each process and the equipment and process equipment used, the inspection items and inspection methods of the workpiece, cutting dosage, time quota, etc.

The technical procedures of the fixture can be divided into parts processing technology, professional technology, assembly technology, etc., but mainly to the preparation of parts machining technology, other technology is determined according to the need, and because the fixture is a small batch production, so the common process of parts processing to indicate the processing process.

Technical Parameter:

A. No chamfering C0.5, no surface damage, deburring

B. No tolerance of +/ -0.3mm

C.Turn over smoothly,  Don't shake

D.Neutral salt spray test for 24H

Structure and Shape Of Overturn Mechanism

Catalogue Of  Hongyi Tengda Automotive Checking Fixtures Parts

Hot Selling Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
