Reverse clamping mechanism for gages

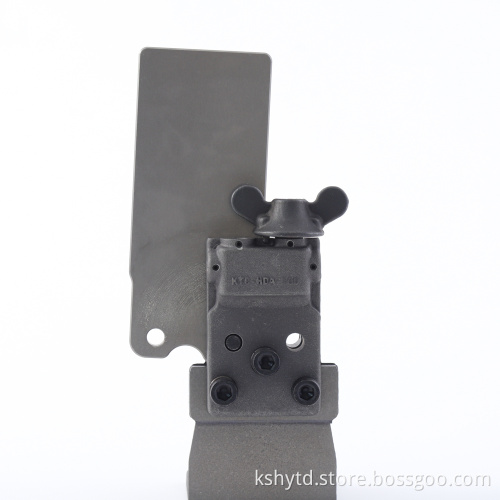

Turning plate mechanism for fixture, especially for automotive trim product fixture.  Includes card bracket base, card bracket side plate, turning card body, latch, latch bushing and rotating shaft.  The screw hole and pin hole on the base of the card bracket are positioned on the fixture to form a structure of the overturned bracket;  The card plate support side plate and the card plate support base are connected by screws and pins to form a turning base. The rotating shaft is closely matched with the card plate support base and the card plate support side plate to form a turning shaft of the card plate body.  The use of this mechanism can reduce the time spent in the design of the fixture, and easy adjustment does not require repeated machining.

Technical Parameter:

A. No chamfering C0.5, no surface damage, deburring

B. No tolerance of +/ -0.3mm

C.Turn over smoothly,  Don't shake

D.Neutral salt spray test for 24H

Structure and Shape Of Flip Mechanism

Catalogue Of  Hongyi Tengda Automotive Checking Fixtures Parts

Hot Selling Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
