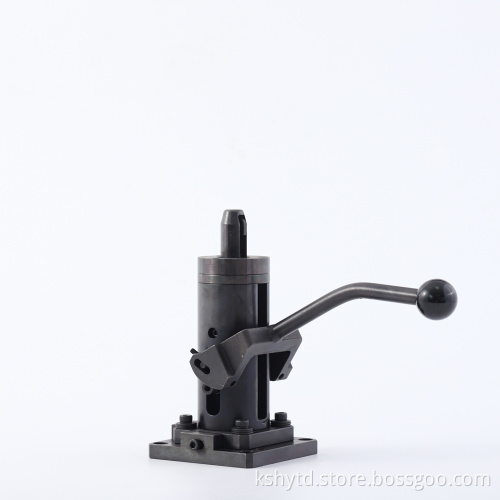

Hook Pin for Car Checking

The opening clamping mechanism belongs to the upper clamping mechanism before welding in the manual or robot automatic welding area of the body-in-white welding workshop of an automobile factory. The clamping mechanism, including the installation frame, is provided with a cylinder under the installation frame, a support is arranged above the support, the support is fixed above the cylinder matching piston rod and the lower end of the rod is connected, the upper end of the rod from the center hole of the support extends upward and is located in the center of the support;  A guide sleeve is arranged on the outer side of the pull rod on the mounting frame

Technical Parameter

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

3. Surface Treatment: Black Coating

Details Of Hook Pins For Auto Checking Gages

Part Number: 12-HD-KHX-A

Part Number: 12-HD-KHX-B

E-Catalogue Of  Hongyi Tengda Automotive Checking Accessories

Hot Selling Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
