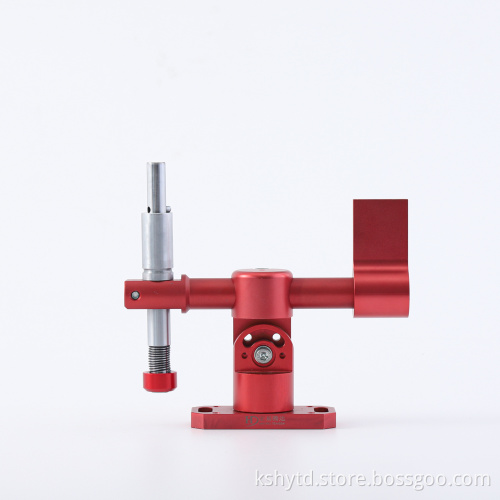

Aluminum Alloy Measuring Bracket for Automobile Fixture

The CMM measures the function of the bracket

CMM bracket is measured in three coordinates measuring instrument when measuring parts of an assisted stents, its main function is positioning parts, three coordinate measuring convenience, all its bearing surface (or points) and locating datum (or points) shall be according to the CAD data milling parts, the structure of modern fixture design is often considered as a measure of stent,  When the online inspection function of the fixture and the CMM measurement support function cannot be satisfied at the same time, the online inspection function of the fixture should be satisfied firstly.

Technical Request:

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

3. Neutral salt spray test

4. The positioning pin is made of bearing steel with hardness of 55 °

Details Shows Of  Hold-down Mechanism for Automotive Checking Fixtures

E-Catalogue and 3D datas of Checking Fixtures Support

Hold-Down Mechanism

Aluminum Alloy Measuring Bracket

Other Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
