Protecting Ball Covers

Aluminum Alloy or ABS tooling balls cover to protect Construction Balls from damage or misadjustment after setting. Can be mounted on our standard Construction-Ball Plate, or directly on the jig or fixture. Two holes allow attaching the cover with diameter 5mm. One size fits all Construction Balls.

Mounts directly to the fixture with two holes of M4 thread. Fits most tooling balls up to 20mm which is above 3/4"

What is the use of Tooling Balls Cover?

1. Protects tooling and inspection balls from damage between operations

2. low cost solution to protect your tooling ball investment

3. Made of a durable, high impact resistant Polymer or 6061 Mounts over 0.875" diameter or smaller tooling ball directly jig fixture with two threaded hole M4.

There are two standard components

1)Blue ABS Tooling Ball Covers Below:

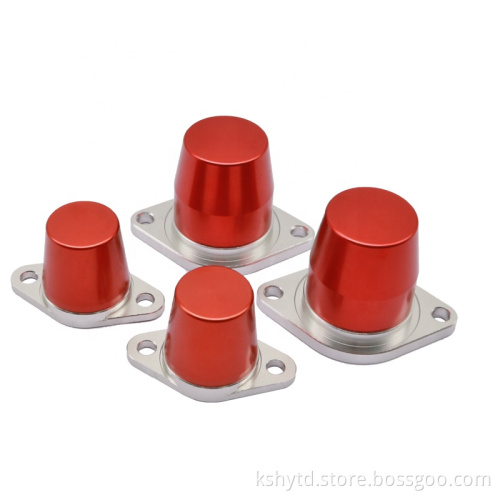

2)Red Aluminum Alloy 6061 Tooling Balls Covers Below:

Related Tooling Balls Products and Accessories

Tooling balls are used as a reference point for inspection, layout, and machining applications. We offer tooling balls with or without a shoulder.

Precision rectangular pad for mounting a Checking Tooling Ball. These rectangular pads should be fastened with two socket-head cap screws, then doweled in place to maintain accurate location.

Other products, such as Checking Pins, Locators, GO NOGO PiNS, Spring, Tooling Balls Cover, Plug Gauge, Slider Mechanism etc.
