Standard Straight Bushings Components

Composition of Checking Gage

Skeleton and base parts;
Body part; Functional parts (including: quick chuck, positioning pin, detection pin, mobile clearance slider, turnover mechanism, measuring table, card plate, etc.)

Position pins and check pins could be Cr12Mov or equivalent, with a hardened surface of 58-60°.The guide of the pin on the gauge shall be matched with bushings, the bushings on the gauge shall be vented, or the pin shall be deaerated.  Bushings can be made of Cr12Mov or equivalent, with a hardened surface, Rockwell hardness C 58-60.  The surface roughness of bushing fit is Ra= 0.8 (μm).  The pin positioning/detection part shall be at least 5mm above the surface of the part.

Technical Parameter:

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

3. Neutral salt spray test

4. Surface Treatment: Chrome Plated

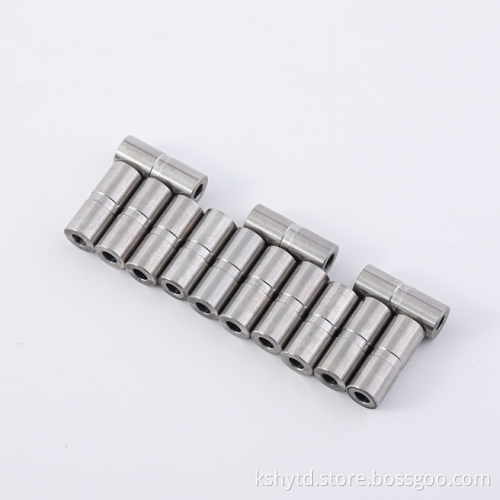

Details Show Of  Guide Bushings

E-Catalogue and 3D datas of Cylinder Bushings

Other Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
