Threaded Cylinder Pins For Automotive Checking

The screw pin is a kind of cylindrical pin, which is fixed in the active part which needs to realize synchronous rotation by thread, and the exposed cylindrical part is connected in the pin hole of the driven part. Mainly used for positioning, also can be used for connection, optical shaft part by interference fit fixed in the pin hole.  There are many kinds of pins, such as tapered pins, taper pins with internal thread, cylindrical pins, cylindrical pins with internal thread, appetizers, cylindrical pins with holes, split pins, etc

Technical Request:

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

3. Neutral salt spray test

4. Hardness 50-55 °

5. Coaxiality: 0.1MM

6. Surface Treatment: Chrome Plated

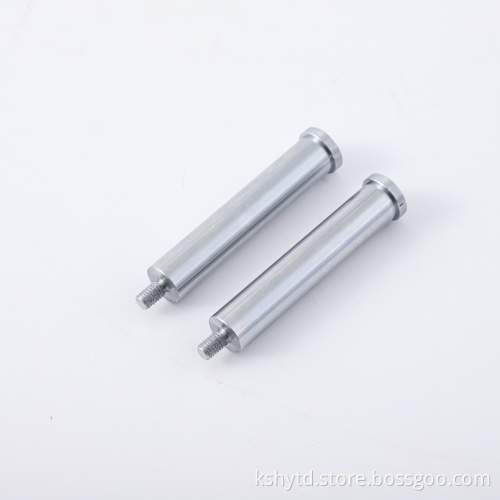

Details Shows Of  Round Pins

E-Catalogue and 3D datas of Cylinder Pins

Other Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
