Custom Testing Pins for Checking Fixtures

Production Description

Locating Pins and Pluge Pin Gage For Automotive Checking Fixtures

Raw material: S136 HRC50-55 °+ Chrome Plated

Technical Request:

1. No chamfering C0.5, deburring.

2. The concentricity of 0.01mm.

3. No tolernace of +/-0.3mm.

4. The neutral salt spray test was performed for 24 hours.

Testing Pins Standard Drawings

Locating Pins/Measuring Pins standard sizes

We CAN make a custom

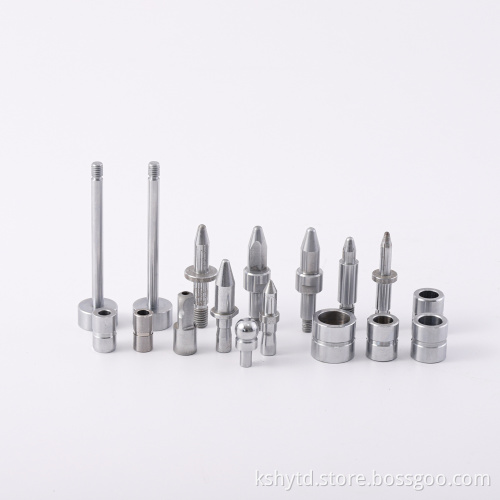

Checking Pins for automotive checking jig fixtures will be assembled with bushings, such as conical checking pin

Detection tapered pin,threaded checking pin,spring checking pin,locating pin, inch checking pins and custom pins.

Locating Pins and Bushings

                                                                Why choose us?

1.Our Inventory of Checking Components of automotive

We have thousands of checking fixtures components for automotive gauge in our warehouse, such as mechanism, measuring and adjustable holder, checking pins, plates and plastic cover, Go Nogo pins, inch tooling balls etc. We can provide fast delivery, improve efficiency, shorten production time, you could get it fastly as your local market under in the case of fierce competition of automobile fixture.

Standard Components Lead Time: 3-5 days.

Custom Components Lead Time: 7 Working day.

2.Our Design and 3D datas

Our design team can provide CAD and 3D datas service, we are glad to share 3D datas with you and help you to build 3d Datas, thus use our standard components, save your energy, shorten your design and production time.

3.Sample Service and Mass Production

MOQ: 1PCS, we can provide sample service to help you to test products' quality for first cooperation.

Relevant Jig Checking Components, such Checking Pins, Plastic Cover, Aluminum Alloy Cover, Spring, Metal Parts, Adjustable Holder etc.

4.Our Workshop

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
