Plug Gauge Handles for Auto Checking Jig

Production Description

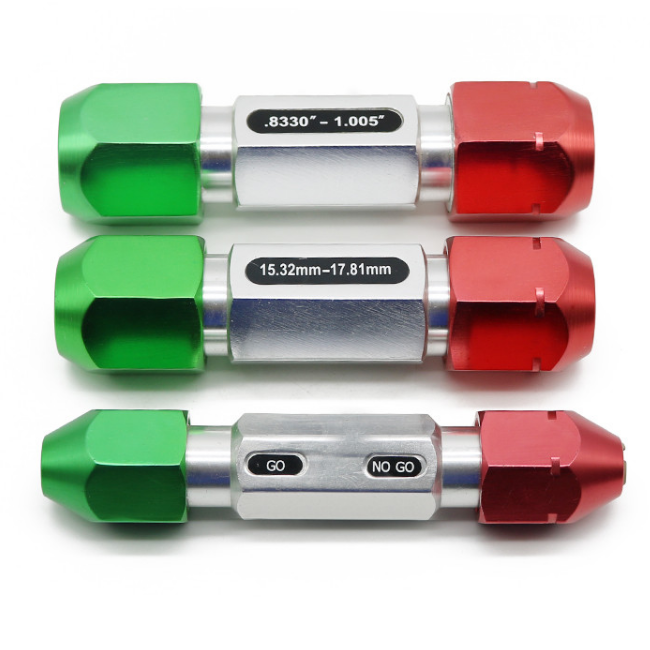

Fully Adjustable Go/No-Go Gage Handle

Technical Request:

1. No chamfering C0.5, deburring

2. No tolernace of +/-0.3mm

Raw material: Aluminum Alloy+Copper Chuck

Surface Treatment: Anodizing

Color: Red for Nogo part, Green for Go part

Copper Chuck and Handle are assembled

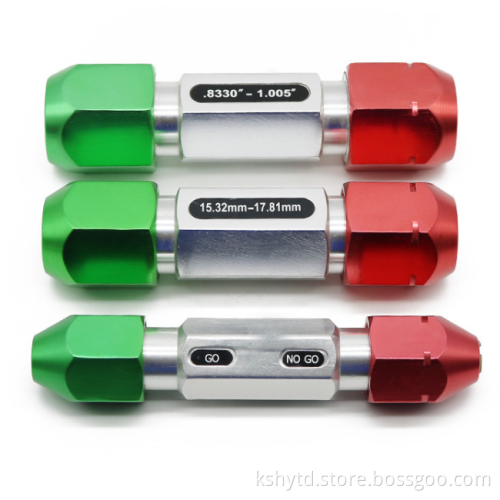

Standard Double Ended Gauge Handles

Relevant Automotive Fixture Checking Components, such as go nogo pins, tooling balls, slider mechanism, checking pins and bushings, locating pins, measuring pins, plug gages, tooling balls plates, tooling balls assembly, tooling balls cover.

Why choose us?

1.Our Inventory of Checking Components of automotive

We have thousands of checking fixtures components for automotive gauge in our warehouse, such as mechanism, measuring and adjustable holder, checking pins, plates and plastic cover, Go Nogo pins, inch tooling balls etc. We can provide fast delivery, improve efficiency, shorten production time, you could get it fastly as your local market under in the case of fierce competition of automobile fixture.

Standard Components Lead Time: 3-5 days.

Custom Components Lead Time: 7 Working day.

2.Our Design and 3D datas

Our design team can provide CAD and 3D datas service, we are glad to share 3D datas with you and help you to build 3d Datas, thus use our standard components, save your energy, shorten your design and production time.

3.Sample Service and Mass Production

MOQ: 1PCS, we can provide sample service to help you to test products' quality for first cooperation.

Relevant Jig Checking Components, such Checking Pins, Plastic Cover, Aluminum Alloy Cover, Spring, Metal Parts, Adjustable Holder etc.

4.Our Workshop

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
