Ball Filler Plug Gauge

Production Description

In order to fulfill the ever-changing demands of our clients, we have been engaged in offering a quality range of Checking Fixtures. In order to meet the variegated requirements of clients, the professionals of our firm develop this range of Checking Fixture using quality tested raw material in accordance with defined quality standards. The offered range is extensively used for checking the quality of automotive parts. Furthermore, we offer our product array at pocket-friendly prices.Checking Fixtures contains Plug Gauge, Tooling Balls and other parts.

Plug Gauge For Automotive Checking Fixtures

Raw material: S136 HRC50-55 °+ Chrome Plated

Technical Request:

1. No chamfering C0.5, deburring.

2. No tolernace of +/-0.3mm.

3. The neutral salt spray test was performed for measuring part for 24 hours

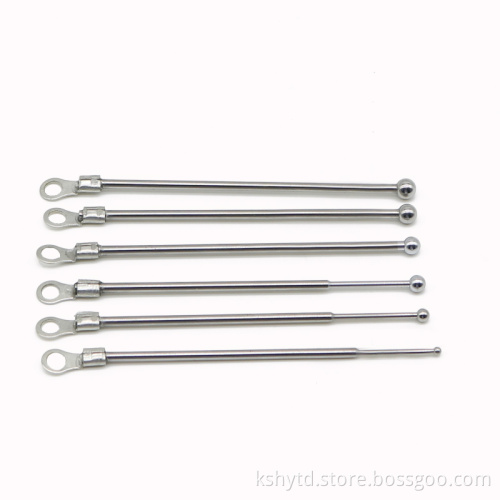

Pictures Below of Gage Balls

Support custom, inch sizes and metric sizes are customized.

                                                                          Why choose us?

1.Our Inventory of Checking Components of automotive

We have thousands of checking fixtures components for automotive gauge in our warehouse, such as mechanism, measuring and adjustable holder, checking pins, plates and plastic cover, Go Nogo pins, inch tooling balls etc. We can provide fast delivery, improve efficiency, shorten production time, you could get it fastly as your local market under in the case of fierce competition of automobile fixture.

Standard Components Lead Time: 3-5 days.

Custom Components Lead Time: 7 Working day.

2.Our Design and 3D datas

3.Sample Service and Mass Production

MOQ: 1PCS, we can provide sample service to help you to test products' quality for first cooperation.

Relevant Jig Checking Components, such Checking Pins, Plastic Cover, Aluminum Alloy Cover, Spring, Metal Parts, Adjustable Holder etc.

4.Our Workshop and Quality Controll

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
