Spherical Go No-Go Pins Gauge

$5.00 - $23.00/Set/Sets

Min. Order:: 10 Set/Sets

Min. Order:: 10 Set/Sets

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shanghai, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000PCS/Week
Supply Ability:	2000 Piece/Week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,CFR,DDU,DDP,Express Delivery
Certificate:	ISO9001 Quality Control System
HS Code:	9031809090
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shanghai,Shenzhen

Product Description

GO NOGO Gauge For Automotive Checking Fixtures Components

Technical Parameters

Product Name	Auto Fixture Checking Spherical GO NOGO Gage Set
Raw Material	S136 for GO NOGO feelers, Aluminum Alloy for Handle
Hot Treatment	HRC50-55°
Surface Treatment	Hard Plated for GO NOGO feelers, Sand Blasting for Aluminum Handle

Checking Fixture GO-NOGO Feelers Handle Set

Go range: diameter 1.5-6mm, diameter 0.25mm is a specification

NoGo range: diameter 2-6.5mm, diameter 0.25mm is a specification

We also can make custom in Sizes, metric sizes or inch sizes are accepted.

GO NOGO Dimension

Product Details

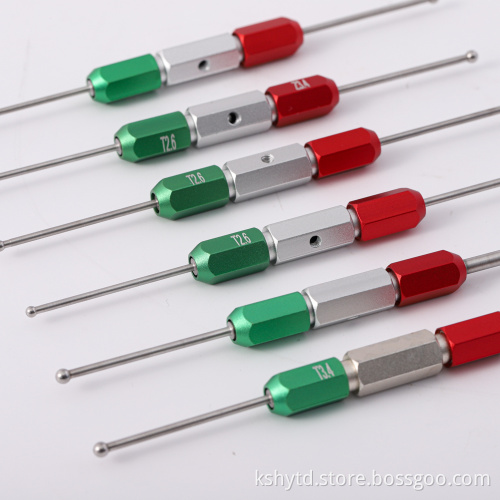

Spherical GO NO-GO PINS GO NOGO Plug Gauge

Other Products

Tooling Balls and Tooling Ball Assembly

Tooling Ball Assembly Use

GO NOGO Pins

GO NOGO

Why choose us?

1.Our Warehouse

We have thousands of checking fixtures components for automotive gauge in our warehouse, such as mechanism, measuring and adjustable holder, checking pins, plates and plastic cover, Go Nogo pins, inch tooling balls etc. We can provide fast delivery, improve efficiency, shorten production time, you could get it fastly as your local market under in the case of fierce competition of automobile fixture.

Standard Components Lead Time: 3-5 days

Custom Components Lead Time: 7 Working day.

warehouse for auto checking fixture components

2.Our Design

Our design team can provide CAD and 3D datas service, we are glad to share 3D datas with you and help you to build 3d Datas, thus use our standard components, save your energy, shorten your design and production time.

company catalogue

3.Sample Service and Mass Production

MOQ: 1PCS, we can provide sample service to help you to test products' quality for first cooperation, If you are not satisfied with our quality or delivery date, unconditional refund is supported. Long Term Cooperation is our goal.

sample service for auto checking components

4.Our Workshop

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.

punch machine
