Simulation Block For Mould

Background Technology:

In order to ensure the normal disassembly of parts, the indispensable analog blocks on large gages need to be avoided before assembly and disassembly of parts.  The current implementation method is: manual installation and disassembly of the analog block through the latch, or through the rotation of the shaft to avoid, or through the seesaw structure to avoid, but the current way there are the following deficiencies: 1, latch type:  Large analog block due to large volume, heavy weight, in the process of manual handling, placement and disassembly, prone to safety accidents, and not easy to align, easy to operate;  2, rotating shaft type: more suitable for small analog block;  3, seesaw type: large space occupation.

Technical Parameter

Fuction: For Copy Detection

Raw Material: Al6061 or Al7075

Surface Treatment: Sandblasting Bright Silver or Black Hard Oxygen

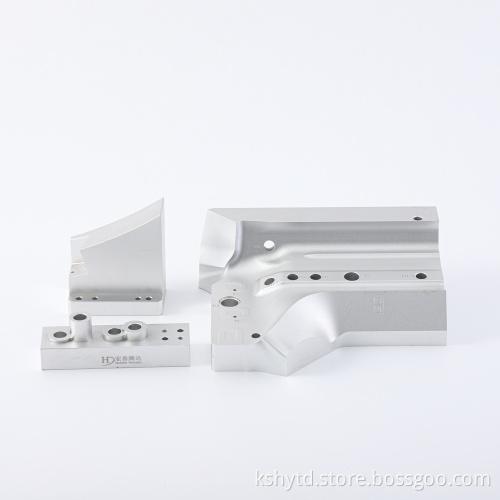

Details Of Simulation block

Part Number:59-HD-MN

Catalogue Of  Hongyi Tengda Automotive Checking Fixtures Parts

Hot Selling Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
