Tensile Mechanism for Checking Fixtures

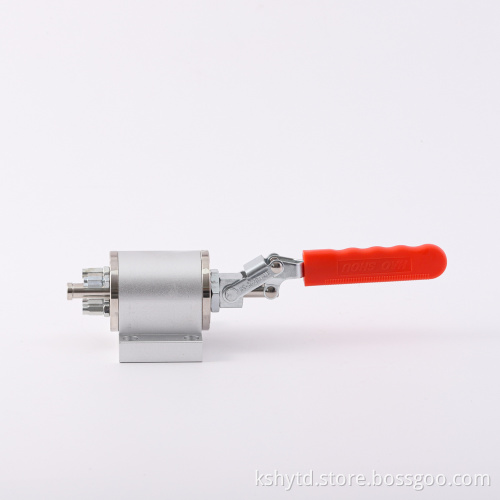

The rope pulling mechanism, also known as the buckle mechanism, is usually composed of three parts: wrench seat, rope pulling and clamping block. The working principle is to realize the opening and closing action by pulling the wrench and driving the clamping block by wire rope pulling, and play the role of clamping products.  This kind of rope institutions commonly used in the testing of your products with card buckle foot, yichang car fixture processing plant designer when designing plastic products are mostly used to this kind of card buckle rope, this kind of product in the test when it needs to let card feet completely fixed and jammed, former card buckle mechanism adopts hand screw thread drives the clamping blocks for opening and closing action, the operation cumbersome and the fixture structure space demand is higher,  The detection efficiency is low.  The rope pulling mechanism overcomes these shortcomings, because it is connected with soft steel rope, so the space is more flexible and compact, and a wrench seat can drive several steel rope and clamping block at the same time, the operation efficiency is higher.

Technical Parameter

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

3. Surface Treatment: Anodizing, AL6061

Details Of Checking Clamp Parts

Part Number:06-HD-LSJG
