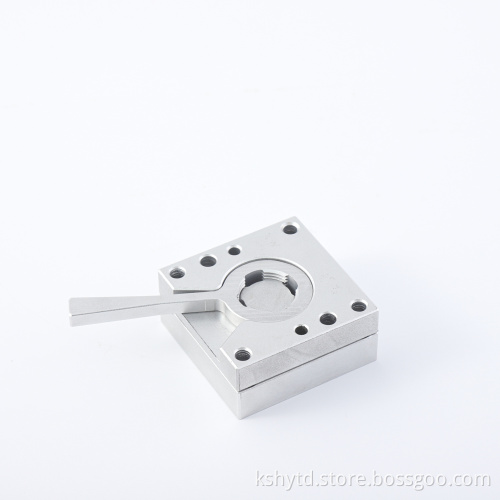

Quick-Changing Mechanism on Auto Fixtures

Fixture installation is quick and convenient, fixture installation has been accurate positioning at the same time, directly input cylindrical positioning pin coordinates can be.  Simplify fixture design to facilitate fixture standardization. When machining flat parts, it is not necessary to design and manufacture large height fixtures.  The horizontal area of the fixture is reduced, so that the working table can be fully used and more fixtures can be placed.  Fixture installation time can be controlled, conducive to production planning management.

Technical Parameter

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

3. Surface Treatment: Black Coating, S45C

4. Surface Treatment: Farblos eloxiert, Al6061

5. Neutral Salt Spray Test 24 Hours

Details Of Quick-Changing Mechanism on Fixtures

Part Number:14-HD-KHJG-A               14-HD-KHJG-B                                14-HD-KHJG-C

Catalogue Of  Hongyi Tengda Automotive Fixtures Parts

Hot Selling Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
