Go No Go Pin Gauge Kit

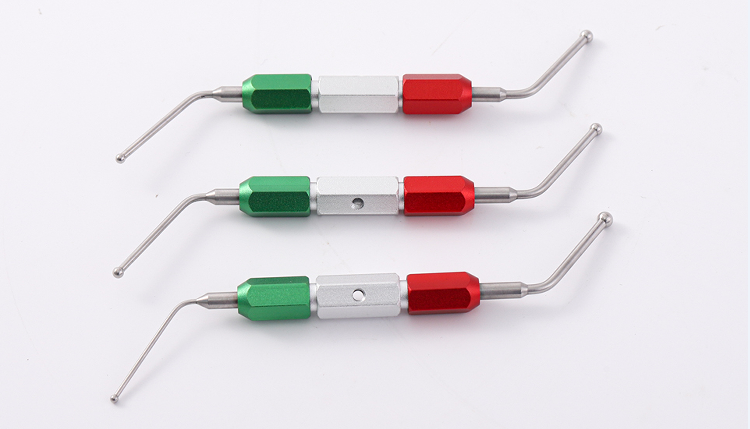

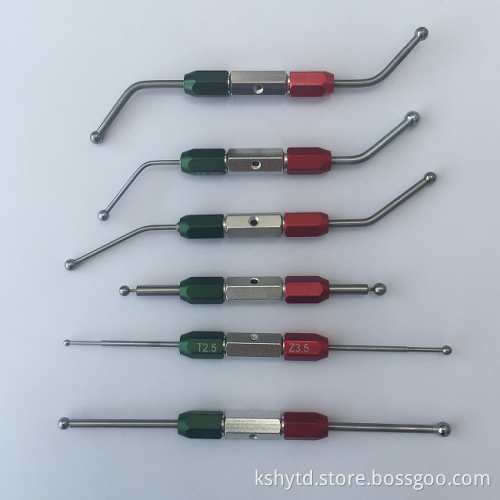

GO NOGO Ball Gauge

GO gauge and NOGO gage notes;

1, In the use of measuring tools should be calibrated plug gauge once every working day.  If the plug gauge is out of tolerance after checking or the ring gauge has reached the weekly inspection period of measuring instruments, the metering management personnel shall take it back, mark it and isolate it and take corresponding measures.

2. After the adjustment of the adjustable thread ring gauge, the measuring part will be out of circle. This phenomenon will be measured and identified again by the metrological repair personnel after the thread grinding, and all dimensions can be put into use after qualified.  The scrap ring shall be marked isolated and disposed of in time, and shall not flow into the production site.

3. After using the measuring tool (ring gauge), the attached objects in the measuring part should be cleaned in time and stored in the specified measuring tool box.  The measuring tools used in the production site should be placed in the fixed position of the process, and be handled with care to prevent damage to the measuring surface caused by bumping.

Technical Request:

1. No chamfering C0.5, deburring

2. No tolernace of +/-0.3mm

Raw material: Aluminum Alloy+Copper Chuck

Surface Treatment: Anodizing

Color: Red for Nogo part, Green for Go part

Copper Chuck and Handle are assembled

Standard Double Ended Gauge Handles

Why choose us?

1.Our Inventory of Checking Components of automotive

We have thousands of checking fixtures components for automotive gauge in our warehouse, such as mechanism, measuring and adjustable holder, checking pins, plates and plastic cover, Go Nogo pins, inch tooling balls etc. We can provide fast delivery, improve efficiency, shorten production time, you could get it fastly as your local market under in the case of fierce competition of automobile fixture.

Standard Components Lead Time: 3-5 days.

Custom Components Lead Time: 7 Working day.

2.Our Design and 3D datas

Our design team can provide CAD and 3D datas service, we are glad to share 3D datas with you and help you to build 3d Datas, thus use our standard components, save your energy, shorten your design and production time.

3.Sample Service and Mass Production

MOQ: 1PCS, we can provide sample service to help you to test products' quality for first cooperation.

Relevant Jig Checking Components, such Checking Pins, Plastic Cover, Aluminum Alloy Cover, Spring, Metal Parts, Adjustable Holder etc.

4.Our Workshop

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
