Plug Pin Handle for Automotive Fittings

The structure design of gages should meet the requirement of quick and barrier-free taking and placing of products on gages;  The detection mechanism and clamp on the fixture, in the open state, does not affect the product take and put, in the closed state, does not affect the detection operation.  Flip mechanism, push-pull mechanism, clamp and other parts in the open state and closed state, do not interfere with each other, and do not interfere with the fixture body parts. Our company has the most complete range of auto fittings, such as Fastener, Overturning Mechanism, Holder, Clamp, Checking Pins, Location Seat, Measuring Pins, Threaded Pins, Checking Pins and Bushings, Spring Wires, Tooling Balls, GO NO-GO Gages etc.

Technical Parameter:

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

3. Neutral salt spray test

4. Surface Treatment: Chrome Plated

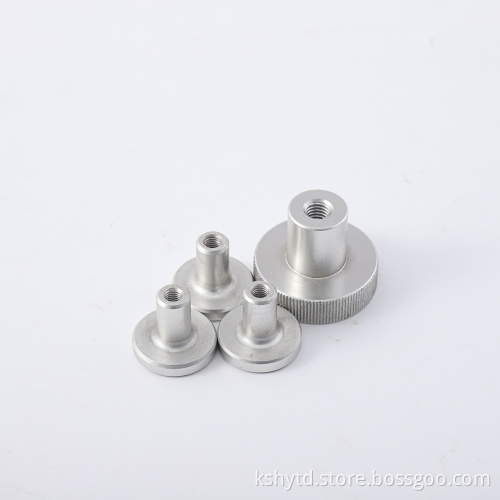

Details Of  Aluminum Alloy Plug Pin Handles For Overturning Mechanism

                                              53-HD-JSGSB-A                                           53-HD-JGSB-B

                                        53-HD-JGSB-E                                                          53-HD-YZSB

E-Catalogue Of Hongyi Tengda Automotive Checking Parts

Other Products

Our Factory and Quality Management

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
