Custom Milling Head For CNC

Hongyi Tengda standard and custom Angle Heads for machining centers are designed and manufactured to handle the most difficult applications. Hence they are ideal for heavy milling operations and complement current machine capabilities. Furthermore accuracy, performance and productivity are maximized by performing vertical, horizontal, and angular operations without repositioning the workpiecey. and durabilit

Gantry heavy  inner hole deep boring and milling head extended side milling Angle head machining center BT30BT50

Material: Steel

Inspection: 100% Inspection before shipping to ensure the quality.

Parameter:

PRM----2000RPM                                      Direction of rotation: Forward Turn-Reverse

Cut Dia: OD250                                          Spindle taper: ISO30#

Gear ratio: 1:1                                             Outer diameter of main shaft end: OD65mm

Maximum power:15KW                             Maximum diameter of cutter head: OD76MM

Weight: 55KG

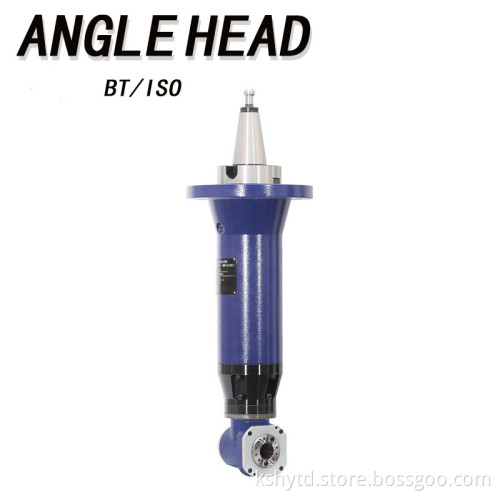

 Product Picture

Specification

Drawing:
