Reference Block for Vehicle Checking Fixtures

Production Description

Datum is divided into design datum and process datum according to their different roles.  According to different uses, the process datum is divided into positioning benchmark, measuring datum and assembly datum.  Positioning datum refers to the datum used to make the workpiece occupy a correct position in the machine tool or fixture during processing.  Objectively, the selected datum should be as far as possible to meet the "one clamping, all (or most) processing".

Circular Reference Block For Auto Checking Part

Raw material: SUS304 Stainless Steel 304

Technical Request:

1. No chamfering C0.5, deburred

2. No tolernace of +/-0.3mm

Square Reference Block for Car Checking Fixtures Accessories

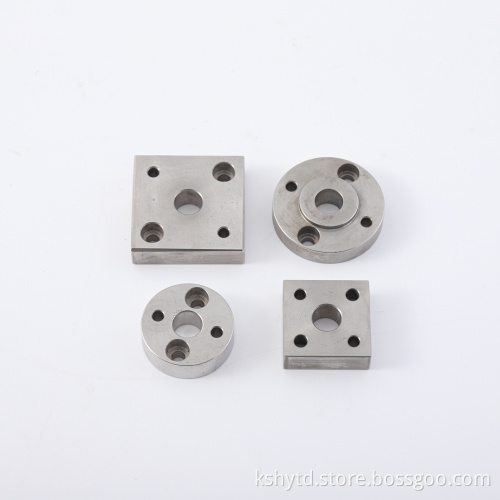

Locating Block Pictures Shown

Other Products

Fastener, Checking Pins and Bushings, Tooling Balls, GO NOGO Gauges, Plug Gages etc.

Currently We have 3 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow.
