Checking Fixtures Location Block

Checking Fixtures Location Block

Firm Checking Fixtures is Check and measure the workpieces and, if necessary, rework the reference points before clamping them in the working system.The feature is Silicone Checking Fixtures  Stainless Checking Fixtures .

The reference sleeve is installed on each reference block of the first reference set, and the inner hole roughness is R0.8μm. The reference sleeve and the reference block are tightly matched, and the copper cover is not allowed to be bonded with glue.

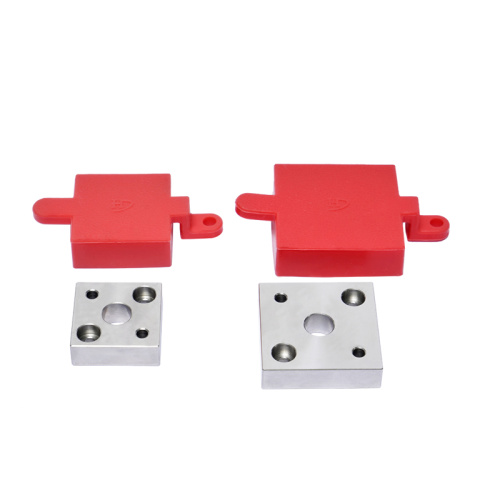

Each reference block shall be equipped with a protective cover (the material of the protective cover is soft plastic), and nameplates shall be installed in a prominent position near it to mark the processing and measurement of the theoretical coordinate value of the automobile. The maximum spacing of each edge of the reference block is 1m, which is convenient for the subsequent use of blue light scanning equipment or three-dimensional joint arm to take reference points for part cooperation.

Standard Sizes as below

Our Workshop and Quality Control

Currently We have 8 CNC high speed machining machines, 6 Punch Machines, 8 Grinding Machines, CMM Inspection, Projector, Digital Caliper etc. We have Production department, Quality Control department, Packaging Department, Sales and Design department, we have formed a standard work flow. we can made Silicone Checking Fixtures and Stainless Checking Fixtures for you.

Here you can find the related products in Automobile Checking Accessories (firm checking fixtures),we are professional manufacturer of Automobile Checking Accessories,Lifting rod,mould lifting lug,black lifting rod,automobile checking fixture. We focused on international export product development, production and sales. We have improved quality control processes of Automobile Checking Accessories to ensure each export qualified product.
