custom cnc angle head

There are a variety of ways to increase the flexibility and capability of a three-axis machine tool. One is to use angle heads, which can enable horizontal and angular milling and drilling without requiring the workpiece to be repositioned for a secondary operation.

Right angle milling head

BT50 right Angle head super rigid side milling head extended side milling head machining center gantry standard. Angle head is widely applied in CNC machining. BT50-ER32

Material: Steel

Inspection: 100% Inspection before shipping to ensure the quality.

Parameter:

PRM----3000RPM                       Torsion-----60NM          Direction of rotation: Forward Turn-Reverse

Clamp Range: 3-20mm                      Gear Ratio: 1:1

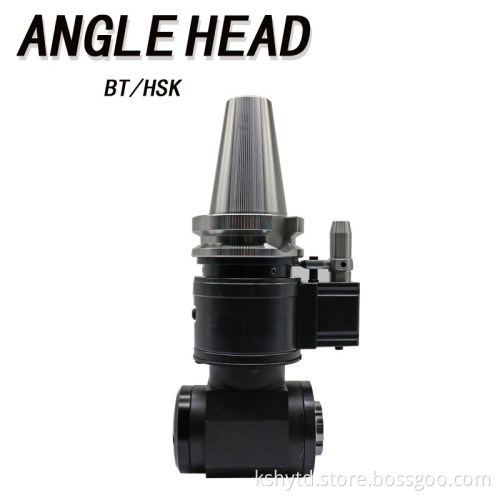

Product Picture

Drawing:
