Customized SS316 Leaf Disc Filter

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu,China
Productivity:	3000pcs per month
Supply Ability:	3000pcs per month
Payment Type:	L/C,T/T,D/P,D/A
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001,SGS,ROHS
HS Code:	73141400
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,Ningbo

Product Description

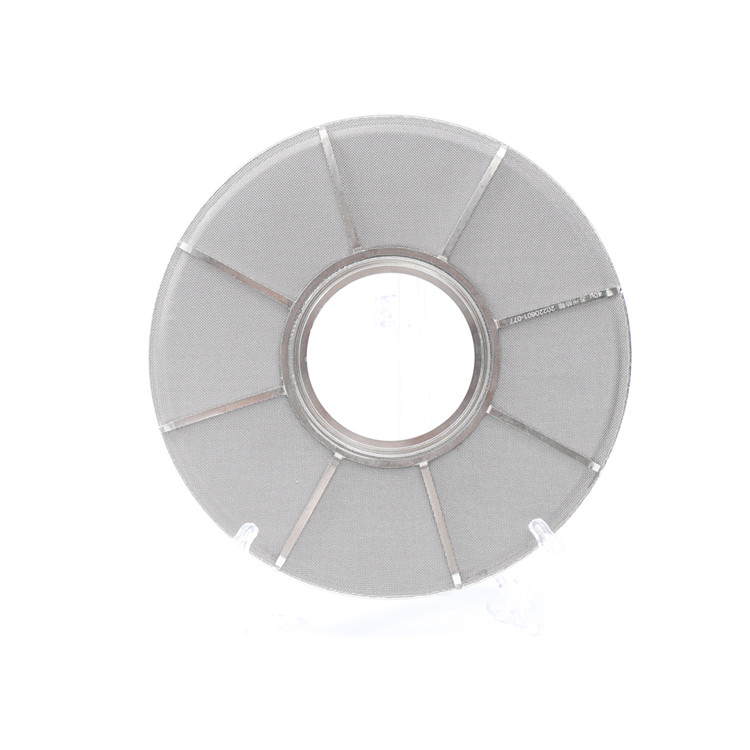

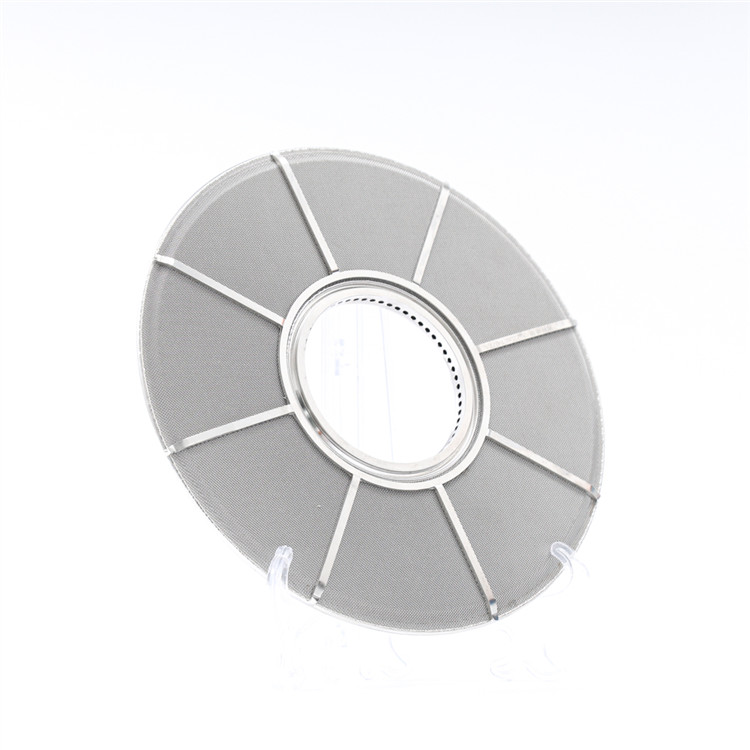

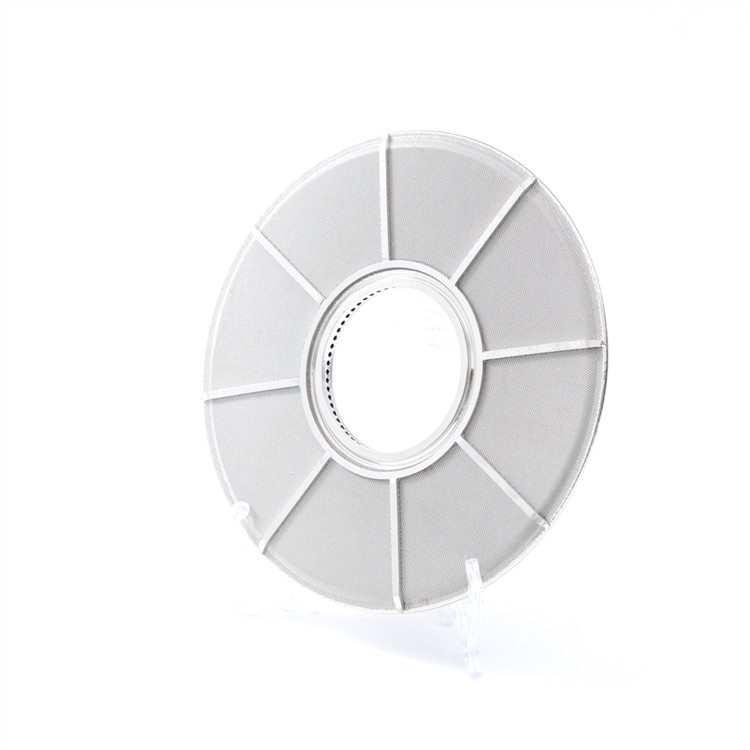

SS316 polymer leaf disc filter is a type of filtration system commonly used in BOPP film industry, it is an ideal high-molecular polymer filtration applications. They are designed to remove solid particles from liquids, ensuring a high level of purity and clarity in the final product.It is made of 316 stainless steel wire mesh and sintering felt and features high-performance filtration components designed for solid-liquid separation in various industrial applications.

Material : Stainless steel sintered felt or other metal fibers

Outer Diameter : 7inch,8.75inch,10inch,12inch

Center Axle: hard, hard-semi, soft

Hard or soft features : excellent mechanical strength, high temperature resistance, strong corrosion resistance ,uniform and stable precision, long service life etc. Filter disc bopet design makes effective filtration area reaches the max, achieves the effective use of space and filtering device miniaturization. It also be called leaf disk filter.

Features :

1, It can effectively block, filter out the crystal point in the melt, and cut the gel, greatly improve the quality of high-end film materials.

2, High strength, low initial pressure difference, greatly improve the service life and extend filter replacement cycle, improve production efficiency.

3, The thickness of filter disc is thin, and the combined filtration area is large.

4, Unique stainless steel fiber felt manufacturing process, replace and exceed the international similar stainless steel fiber sintered felt technical level.

5. Provide key support for the breakthrough of high-end polymer film materials in China.

Applications

Mainly used in BOPET industry, it is the key component of BOPET and fiber spinning and other production equipment, suitable for fine filtration of high viscosity polymers.

Leaf disk filter can efficiently remove hard and gels pollution material ,can be reused and washed many times, thus reducing production costs.

Specifications

The outer diameter of the leaf member include: 7inch,8.75inch,10inch,12inch etc. Center axle can be hard, semi- hard or soft, and other specifications can be customized .
