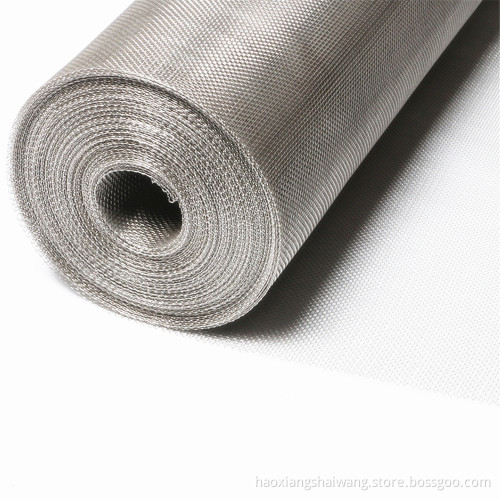

SUS 304 Silver Stainless Steel Wire Mesh

SUS 304 Silver Stainless Steel Wire Mesh

$1.00 - $5.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shanghai, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu,China
Productivity:	500rolls per month
Supply Ability:	500rolls per month
Payment Type:	L/C,T/T,D/P,D/A
Incoterm:	EXW,CIF,CFR,FOB
Certificate:	ISO9001,SGS,ROHS
HS Code:	73141400
Transportation:	Ocean,Land,Air,Express
Port:	Shanghai,China

Product Description

Stainless steel wire mesh can be supplied in square mesh or space mesh as a result of different weaving patterns or to meet the demand of specific application devices. This kind of wove Mesh is formed by interlocking wire to produce a given aperture. Arch offers a range of plain weave wire mesh from 10 micron to the heavy industrial meshes with big apertures. Special weaves for intense filter cloth applications can also be supplied,such as twill weave wire mesh ,welded wire mesh,crimped wire mesh. welcome to consult at any time !

Stainless Steel Wire Mesh Specifications

Mesh/Inch	Wire Diameter(mm)	Aperture(mm)	Mesh/Inch	Wire Diameter(mm)	Aperture(mm)
2mesh	1.80	10.9	60mesh	0.15	0.273
3mesh	1.60	6.866	60mesh	0.19	0.233
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.99	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
24mesh	0.34	0.708	200mesh	0.053	0.074
26mesh	0.28	0.696	250mesh	0.04	0.061
30mesh	0.28	0.567	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.14	0.368	400mesh	0.025	0.0385

Stainless Steel Wire Mesh:

1. Material: SUS302, 304, 304L, 316, 316L, etc

2. Weaving: Plain Weave, Twill Weave, Plain Dutch Weave, Dutch Twill Weave.

3. Product range: Usually, manufactured in 30m ( up to 200) long and in width of 1m 1.2m 1.5m 2.0m etc. Or cut to length panels as client's requirement.

4. Packing: Water-proof paper, woven bag and also can be made as per client requirement.

5. Feature: Acid resistant, alkali resistant, heat resistant, corrosion resistant.

Because the products are customized, the specifications and types are different, and the prices are also different. The above quotations are all reference prices. Please provide online consultation of product drawings or pictures for detailed price consultation.

SUS304 mesh screen

staianless steel filter mesh 100micron wire mesh

FAQ

Q1: Are you factory/manufacturer or trader ?

We are direct factory who owns production lines and workers. Everything if flexible and there is no need to worry about extra charges by the middle person or trader.

Q2 : which countries do you export to ?

We are supporting worldwide customers cause we can export directly .

Q3 : Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4 : Do you support custom-make service ?

Yes, OEM&ODM service highly welcomed

Q5 : What is your minimum order quantity ?

Actually there is no MOQ for our products .But usually we recommend a quantity based on the price which is easy to accept and trial order also support .

Q6 : How long is your delivery time?

Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q7: What is your terms of payment ?

100% in advance is preferred for the 1st order.

30% T/T in advance ,70% balance before shipment.

Other payment terms are negotiable .
