Three Heads Fully Automatic Chocolate Depositing Machine

Three Heads Fully Automatic Chocolate Depositing Machine

$53000.00 - $73000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai/ Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou,China
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,DDP,DDU
Certificate:	SGS
HS Code:	8438200000
Transportation:	Ocean,Land
Port:	Shanghai/ Ningbo

Product Description

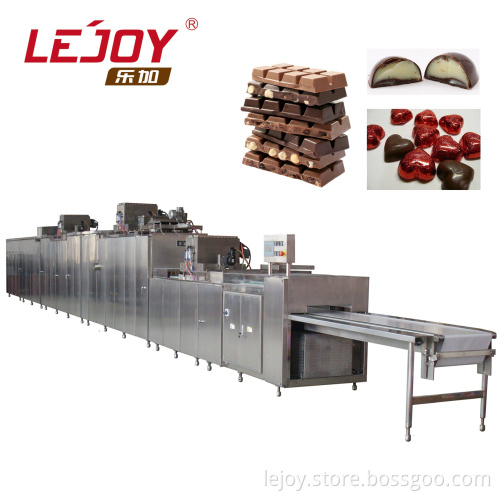

QJJ330 (3+2) Three Heads Fully Automatic Multi Function Chocolate Depositing Machine

Product Description of Three Shots Chcocolate Depositing Machine

Model	Production Capacity (Piece of Mold/min)	Whole Machine Power(kW)	Number of Mold(Piece)	Mold Dimension (mm)	Weight (kg)	Outside Dimension (mm)
QJJ330(3+2)	6-15	28	380	330×200×30	5300	18000×1200×1900

Model

Production Capacity

(Piece of Mold/min)

Whole Machine Power(kW)

Number of Mold(Piece)

Mold Dimension

(mm)

Weight

(kg)

Outside Dimension

(mm)

QJJ330(3+2)

6-15

380

330×200×30

5300

18000×1200×1900

Usage:

QJJ330(3+2) Chocolate Depositing Machine can both be used for the production of single color,two colors(left and right,up and down),three colors,big portion central filling,whole nuts filling,crushed nuts filling chocolate products,big chocolate bar and etc.3+2 refers to three chocolate depositing heads plus two nuts adding devices.These 2 models have fully automatic functions of moulds pre-heating,depositing,moulds vibrating,moulds truning,cooling,de-molding and conveying.

Other chocolate depositing machine models manufactured by our factory:

Models	QJJ150	QJJ175 Single Head	QJJ175 Two Heads	QJJ510 Single Head
Production Capacity (Piece of Mould/min)	6-10	6-15	6-15	6-15
Whole Machine Power (kW)	6	19	23	21
Number of Mould (Piece)	200	280	330	280
Mould Size (mm)	275×275×30	330×200×30	330×200×30	510×200×30
Machine Weight (kg)	600	3500	4500	4000
Outside Dimension (mm)	400×520×150	16000×1000×1600	16000×1000×1800	16000×1200×1600
Models	QJJ510 Two Heads	QJJ510(3+2)	QJJ275(3+2)	QJJ1000
Production Capacity (Piece of Mould/min)	6-15	6-15	6-15	6-10
Whole Machine Power (kW)	25	47	61	49
Number of Mould (Piece)	330	380	410	580
Mould Size (mm)	510×200×30	510×200×30	275×175×30	275×175×30
Machine Weight (kg)	5300	7000	6500	8200
Outside Dimension (mm)	16000×1200×1800	19000×1300×2500	15420×5270×2100	26800×3500×2550
