Lejoy QJJ175 Chocolate Making Machine

$27900.00 - $37750.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai/ Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6 Set/Sets per Quarter
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,DDP,DDU
Certificate:	ISO
Transportation:	Ocean,Land
Port:	Shanghai/ Ningbo

Product Description

QJJ175 Chocolate Making Machine

Product Description

Model	Production Capacity Piece of Mold/min	Whole Machine Power (kW)	Number of Mold (Piece)	Weight (kg)	Outside Dimension (mm)
QJJ175/Single Head	6-15	19	280	3500	16000×1000×1600

Model

Production Capacity

Piece of Mold/min

Whole Machine Power

(kW)

Number of Mold

(Piece)

Weight

(kg)

Outside Dimension

(mm)

QJJ175/Single Head

6-15

280

3500

16000×1000×1600

Usage:

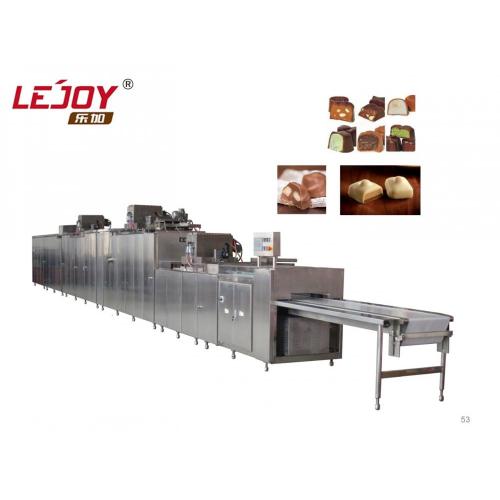

QJJ175 Single Head Chocolate Depositing Machine can both be used for the production of single color, two colors (left and right) and pastes central filling chocolates. These two models have fully automatic functions of moulds pre-heating, depositing, moulds vibrating, cooling, de-moulding and conveying, and adopt PLC control system.

Other chocolate depositing machine models manufactured by our factory:

Models	QJJ150	QJJ175 Two Heads	QJJ510 Single Head	QJJ510 Two Heads
Production Capacity (Piece of Mould/min)	6-10	6-15	6-15	6-15
Whole Machine Power (kW)	6	23	21	25
Number of Mould (Piece)	200	330	280	330
Mould Size (mm)	275×275×30	330×200×30	510×200×30	510×200×30
Machine Weight (kg)	600	4500	4000	5000
Outside Dimension (mm)	400×520×150	16000×1000×1800	16000×2000×1600	16000×1200×1800
Models	QJJ330(3+2)	QJJ510(3+2)	QJJ275(3+2)	QJJ1000
Production Capacity (Piece of Mould/min)	6-15	6-15	6-15	6-10
Whole Machine Power (kW)	28	47	61	49
Number of Mould (Piece)	380	380	410	580
Mould Size (mm)	330×200×30	510×200×30	275×175×30	275×175×30
Machine Weight (kg)	5300	7000	6500	8200
Outside Dimension (mm)	18000×1200×1900	19000×1300×2500	15420×5270×2100	26800×3500×2550

Lejoy QJJ175 Chocolate Making Machine

Product Display and Samples
