QJJ150 Semi-Automatic Chocolate Depositing Machine

QJJ150 Semi-Automatic Chocolate Depositing Machine

$9350.00 - $12650.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai/ Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	10 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,DDP,DDU
Transportation:	Ocean,Land
Port:	Shanghai/ Ningbo

Product Description

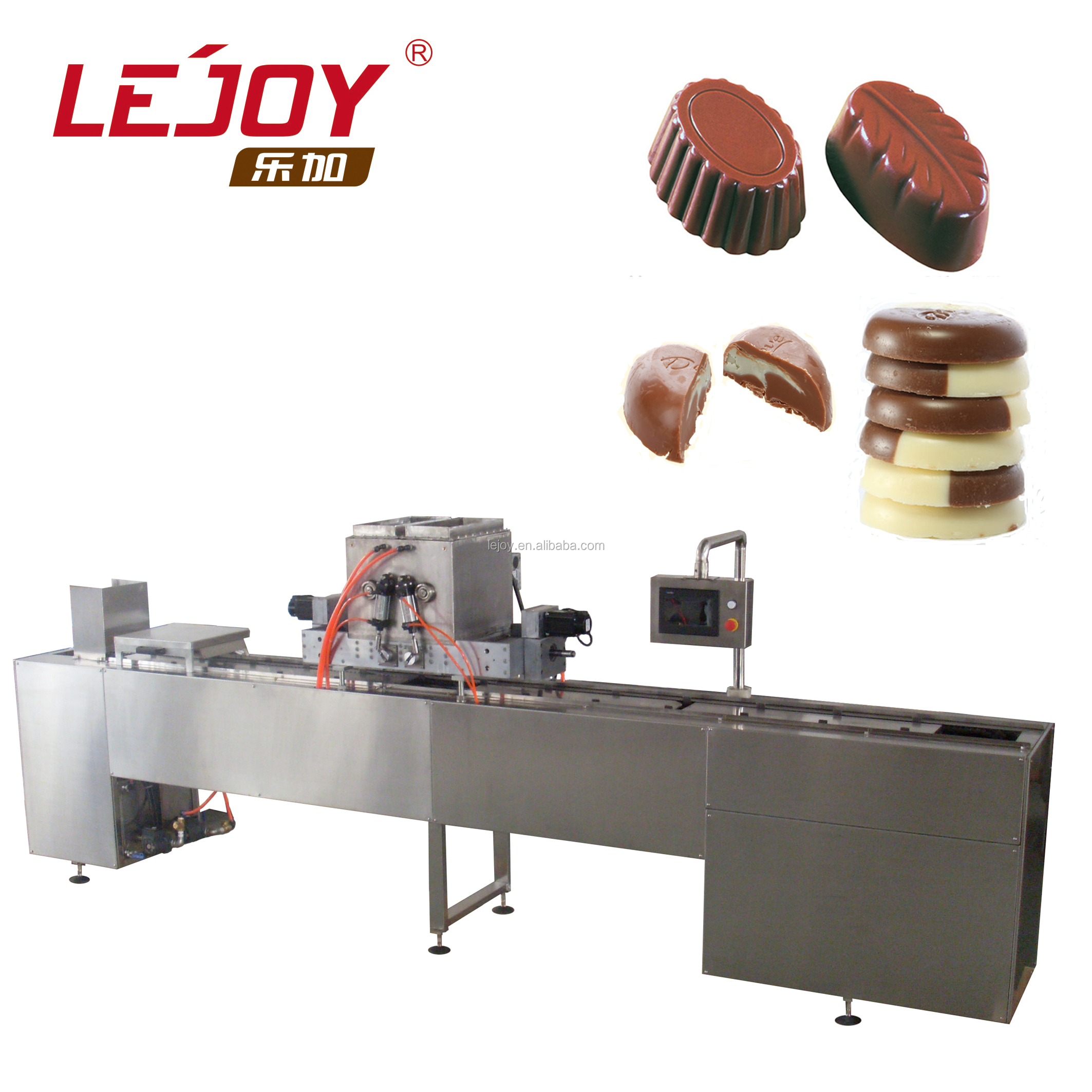

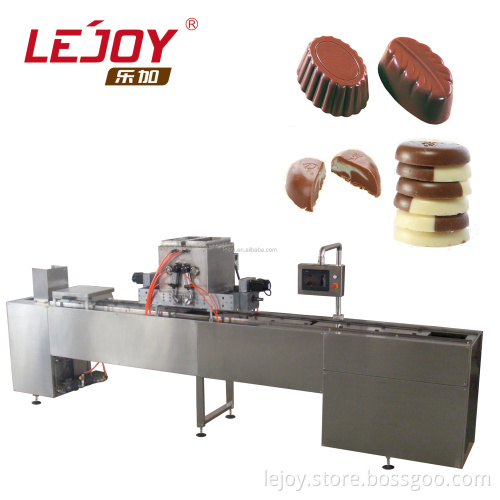

QJJ150 Semi-Automatic Chocolate Depositing Machine

Product Description

Model	Production Capacity Piece of Mold/min	Whole Machine Power (kW)	Number of Mold (Piece)	Weight (kg)	Outside Dimension (mm)
QJJ150	6-15	6	200	500	4000×520×1500

Model

Production Capacity

Piece of Mold/min

Whole Machine Power (kW)

Number of Mold

(Piece)

Weight

(kg)

Outside Dimension

(mm)

QJJ150

6-15

200

500

4000×520×1500

Usage:

QJJ150 Chocolate Depositing Machine can be used for the roduction of single color,two colors(left and right) and pastes central filling chocolates.This machine is a semi-automatic type and has functions of moulds pre-heating.depositing,moulds vibrating,and conveying.It adopts PLC control system and can easily change the moulds for different chocolate product varieties.It is suitable for factories with small batch and multi species production.

Other chocolate depositing machine models manufactured by our factory:

Models	QJJ175 Single Head	QJJ175 Two Heads	QJJ510 Single Head	QJJ510 Two Heads
Production Capacity (Piece of Mould/min)	6-15	6-15	6-15	6-15
Whole Machine Power (kW)	19	23	21	25
Number of Mould (Piece)	280	330	280	330
Mould Size (mm)	330×200×30	330×200×30	510×200×30	510×200×30
Machine Weight (kg)	3500	4500	4000	5000
Outside Dimension (mm)	16000×1000×1600	16000×1000×1800	16000×2000×1600	16000×1200×1800
Models	QJJ330(3+2)	QJJ510(3+2)	QJJ275(3+2)	QJJ1000
Production Capacity (Piece of Mould/min)	6-15	6-15	6-15	6-10
Whole Machine Power (kW)	28	47	61	49
Number of Mould (Piece)	380	380	410	580
Mould Size (mm)	330×200×30	510×200×30	275×175×30	275×175×30
Machine Weight (kg)	5300	7000	6500	8200
Outside Dimension (mm)	18000×1200×1900	19000×1300×2500	15420×5270×2100	26800×3500×2550
