JMJ2000 Chocolate Conche and Refiner Machine

$24000.00 - $29000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Train

Port:: Shanghai, Shenzhen, Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou,China
Productivity:	6 Set/Sets per Quarter
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA
Certificate:	SGS
HS Code:	843820
Transportation:	Ocean,Land,Train
Port:	Shanghai,Shenzhen,Ningbo

Product Description

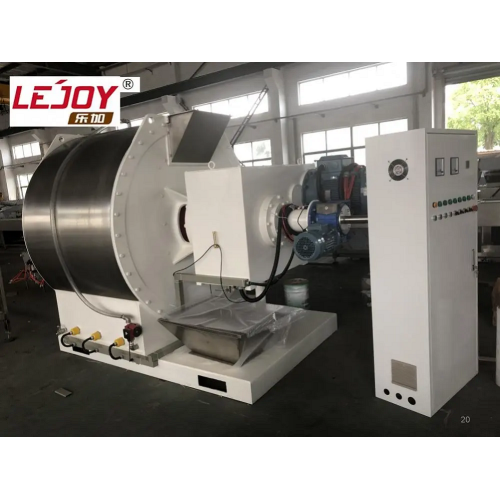

High Quality Chocolate Conche and Refiner

Features of Chocolate Conche And Refiner: effectively reduce the consumption of electric energy, reduce the temperature caused by friction of chocolate slurry and wear of parts during normal grinding. Its reasonable transmission structure pushes the equipment to a new bright spot.

This Conching Machine has the advantages of compact structure, simple operation, convenient maintenance, less one-time investment, and quick use. It is suitable for the production process requirements of small chocolate confectionery factories. It is the main equipment in the chocolate production line, mainly used for fine grinding chocolate paste.

Chocolate Conche And Refiner machine is the main equipment for fine grinding chocolate. It is also suitable for grinding soybean powder, oil and liquid, as well as fine grinding of daily chemical raw materials. The fine grinding time is generally 7~9 hours, and the average fineness can reach 20 μ m.

Model	Capacity (L)	Fineness (um)	Duration (h)	Main Power (kw)	Heating Power (kw)	Weight (kg)	Outside Dimension (mm)
JMJ2000	2000	20-25	18-22	37	9	5300	3320×2000×1950

Model

Capacity

(L)

Fineness

(um)

Duration

(h)

Main Power

(kw)

Heating Power

(kw)

Weight

(kg)

Outside Dimension

(mm)

JMJ2000

2000

20-25

18-22

5300

3320×2000×1950

Chocolate Refiner usage:

Model	JMJ40	JMJ500	JMJ1000	JMJ2000	JMJ3000
Capacity(L)	40	500	1000	2000	3000
Fineness(um)	20-25	20-25	20-25	20-25	20-25
Duration(h)	7-9	12-18	14-20	18-22	18-22
Main Power(kw)	2.2	15	22	37	55
Heating Power(kw)	2	7.5	7.5	9	9
Machine Weight(kg)	360	2800	3500	5300	8500
Outside Dimension(mm)	1100×800×1100	2500×1080×1370	2780×1330×1800	3320×2000×1950	4200×2000×1950
