Chocolate Conche and Refiner Machinery

$8750.00 - $9850.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai/ Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	SUZHOU,CHINA
Productivity:	500KG/BATCH
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,DDP,DDU
Certificate:	SGS
HS Code:	8438200000
Transportation:	Ocean,Land
Port:	Shanghai/ Ningbo

Product Description

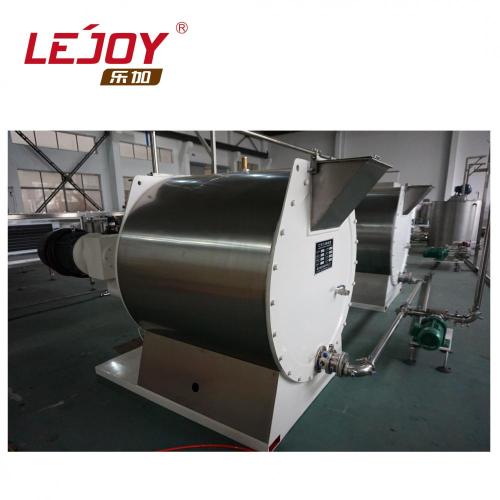

JMJ500 Chocolate Conche and Refiner

Product Description

JMJ500 Chocolate Conche And Refiner capacity 500L per batch .It meets small or Medium capacity required foods factories .It has long service life and running stability features . Chocolate Conching Machine is used for refining and conching chocolate pastes and also suitable for refining jam,peanut butter or other liquor/pastes which have similar features with chocolate paste . It is suggested to use sugar powder with 100mesh .It is good for protecting Chocolate Refiner liners and scrapers . Conching Machine has mixing functions as well . We can add all ingredients in powder or liquidity into conche machine to mix them together while refining .Chocolate Conche and Ball Milling Machines are both used for refining chocolate pastes .

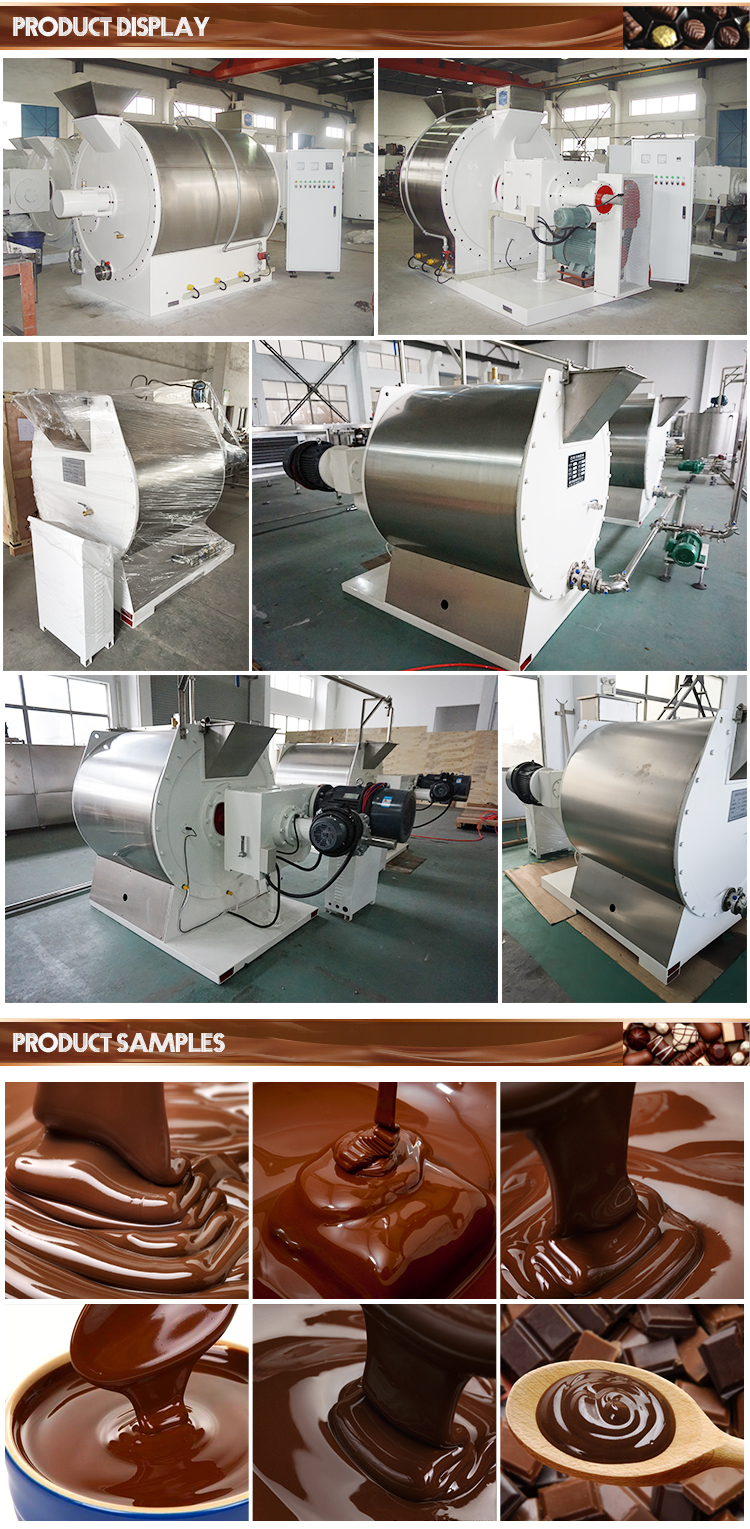

Jmj500 1 Jmj500 2 Jmj500 4 Jmj500 3

Chocolate refiner and conche models manufactured by our factory:

Model	JMJ40	JMJ500A	JMJ1000A	JMJ2000C	JMJ3000C
Capacity(L)	40	500	1000	2000	3000
Fineness(um)	20-25	20-25	20-25	20-25	20-25
Duration(h)	7-9	12-18	14-20	18-22	18-22
Main Power(kw)	2.2	15	22	37	55
Heating Power(kw)	2	7.5	7.5	9	9
Machine Weight(kg)	360	2800	3500	5300	8500
Outside Dimension(mm)	1100×800×1100	2500×1080×1370	2780×1330×1800	3320×2000×1950	4200×2000×1950
