Small Capacity Chocolate Conche and Refiner

Small Capacity Chocolate Conche and Refiner

$3000.00 - $3800.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Train

Port:: Shanghai, Ningbo, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	SUZHOU,CHINA
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU
Certificate:	SGS
HS Code:	8438200000
Transportation:	Ocean,Land,Train
Port:	Shanghai,Ningbo,Shenzhen

Product Description

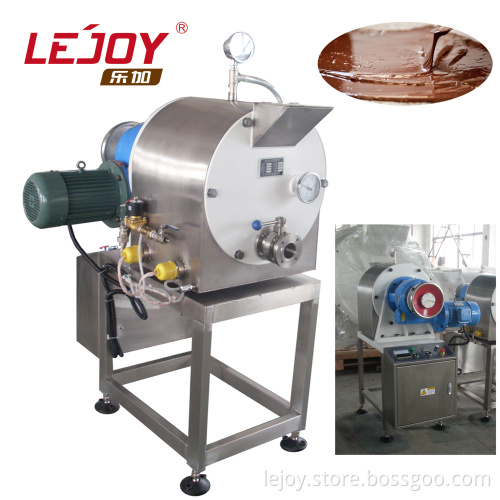

Chocolate Shop Use Small Capacity Machine For Conching and Refining Chocolate

Chocolate Conche and Refiner is one of the important productions for dealing chocolate pastes and mix all ingredients.Before delivering to Chocolate Enrobing and Coating Machines or Chocolate Depositing Machines .It has to refine chocolate paste to 20-25um to make chocolate with good tastes .Chocolate Conching Machine has electric heating with water jacket .The temperatures are controlling by temperature controller .You can set required temperatures in Chocolate Refiner .Usually,we suggest heating temperature(chocolate paste melting temperature) at 40℃ ,water flow in temperature at 45℃. It is automatically controlled by controller after settings .Lejoy use good quality Chinese brands motors and electrical components .Reducer made by our company .Besides ,Siemens ,ABB,SEW,Schneider or Omron are usually selected for Chocolate Machines .

Model	Capacity (L)	Fineness (um)	Duration (h)	Main Power (kw)	Heating Power (kw)	Weight (kg)	Outside Dimension (mm)
JMJ40	40	20-25	7-9	2.2	2	360	1100×800×1100

Model

Capacity

(L)

Fineness

(um)

Duration

(h)

Main Power (kw)

Heating Power

(kw)

Weight

(kg)

Outside Dimension

(mm)

JMJ40

20-25

7-9

2.2

360

1100×800×1100

Tyj

Jmj40

Lab Small Chocolate Conche And Refiner

Chocolate refiner and conche models manufactured by our factory:

Model	JMJ40	JMJ500A	JMJ1000A	JMJ2000C	JMJ3000C
Capacity(L)	40	500	1000	2000	3000
Fineness(um)	20-25	20-25	20-25	20-25	20-25
Duration(h)	7-9	12-18	14-20	18-22	18-22
Main Power(kw)	2.2	15	22	37	55
Heating Power(kw)	2	7.5	7.5	9	9
Machine Weight(kg)	360	2800	3500	5300	8500
Outside Dimension(mm)	1100×800×1100	2500×1080×1370	2780×1330×1800	3320×2000×1950	4200×2000×1950
