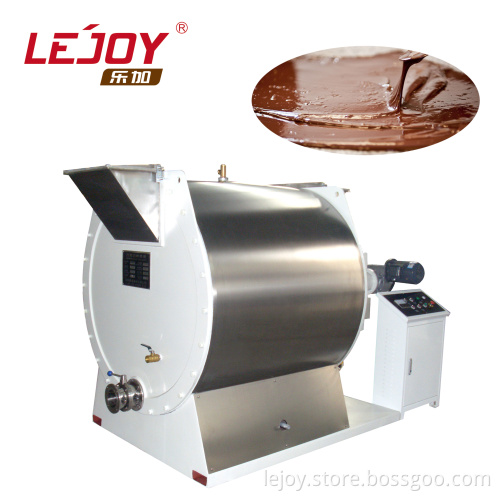

JMJ1000 Chocolate Conche and Refiner

$13500.00 - $18500.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Train

Port:: Shanghai, Ningbo, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	SUZHOU,CHINA
Productivity:	1000KG PER BATCH
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU
Certificate:	SGS
HS Code:	8438200000
Transportation:	Ocean,Land,Train
Port:	Shanghai,Ningbo,Shenzhen

Product Description

JMJ1000 Chocolate Conche and Refiner

Model	Capacity (L)	Fineness (um)	Duration (h)	Main Power (kw)	Heating Power (kw)	Weight (kg)	Outside Dimension (mm)
JMJ1000A	1000	20-25	14-20	22	7.5	3500	2780×1330×1800

Model

Capacity

(L)

Fineness

(um)

Duration

(h)

Main Power

(kw)

Heating Power

(kw)

Weight

(kg)

Outside Dimension

(mm)

JMJ1000A

1000

20-25

14-20

7.5

3500

2780×1330×1800

JMJ1000 Chocolate Conche And Refiner with capacity 1000L .It’s motor power 22kw ,electric heating power 7.5kw .It takes 14-20hours refining to get 20-25um fineness . JMJ1000 Chocolate Conching Machine weight 3500kg ,outside dimension 2780*1330*1800mm . Chocolate Refiner equipped with electrical box ,all electrical wires are connected ready . JMJ1000 Conching Machine temperatures can be set in electrical box .It is automatic temperature control . Chocolate conche machine require water supply . Tap water or cold water both suitable . Chocolate paste after conching usually delivering to Chocolate Melting and Storage Machines to store .

Chocolate Conche and Refiner models manufactured by our factory:

Model	JMJ40	JMJ500A	JMJ1000A	JMJ2000C	JMJ3000C
Capacity(L)	40	500	1000	2000	3000
Fineness(um)	20-25	20-25	20-25	20-25	20-25
Duration(h)	7-9	12-18	14-20	18-22	18-22
Main Power(kw)	2.2	15	22	37	55
Heating Power(kw)	2	7.5	7.5	9	9
Machine Weight(kg)	360	2800	3500	5300	8500
Outside Dimension(mm)	1100×800×1100	2500×1080×1370	2780×1330×1800	3320×2000×1950	4200×2000×1950
