QMJ500 Chocolate Ball Miller

$35000.00 - $45000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Port:: Shanghai/ Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou,China
Productivity:	6 Set/Sets per Quarter
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Certificate:	SGS
HS Code:	8438200000
Port:	Shanghai/ Ningbo

Product Description

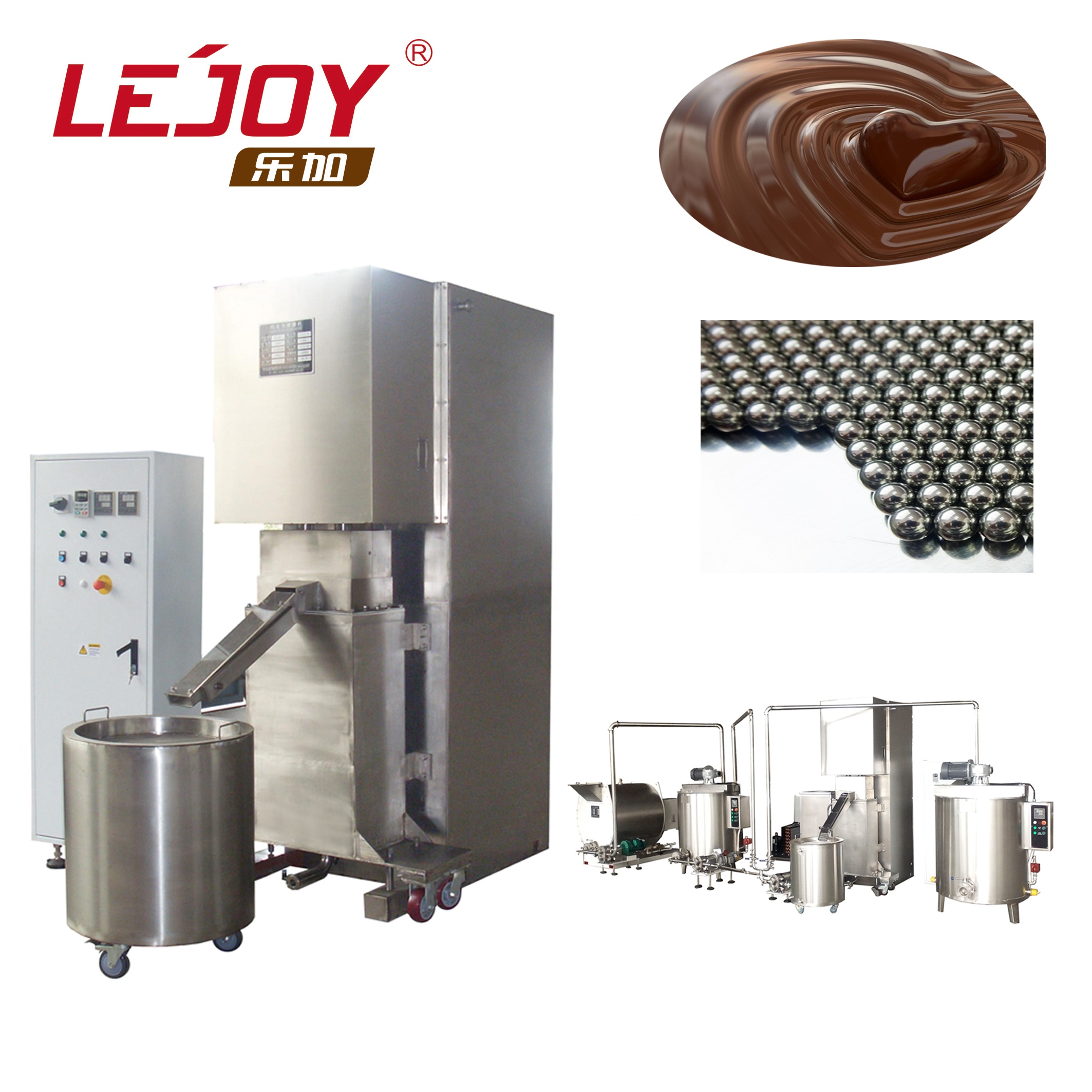

QMJ500 Chocolate Ball Miller

Product Description

Usage & Specification:

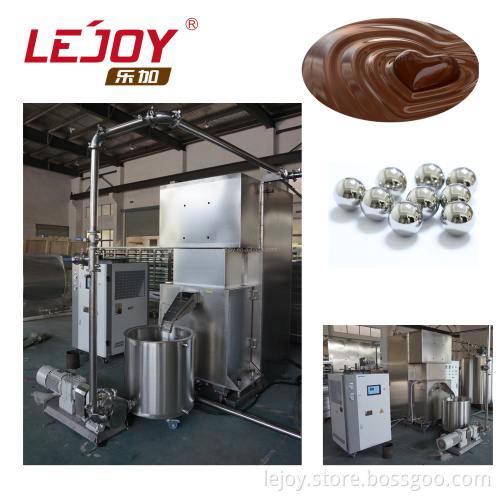

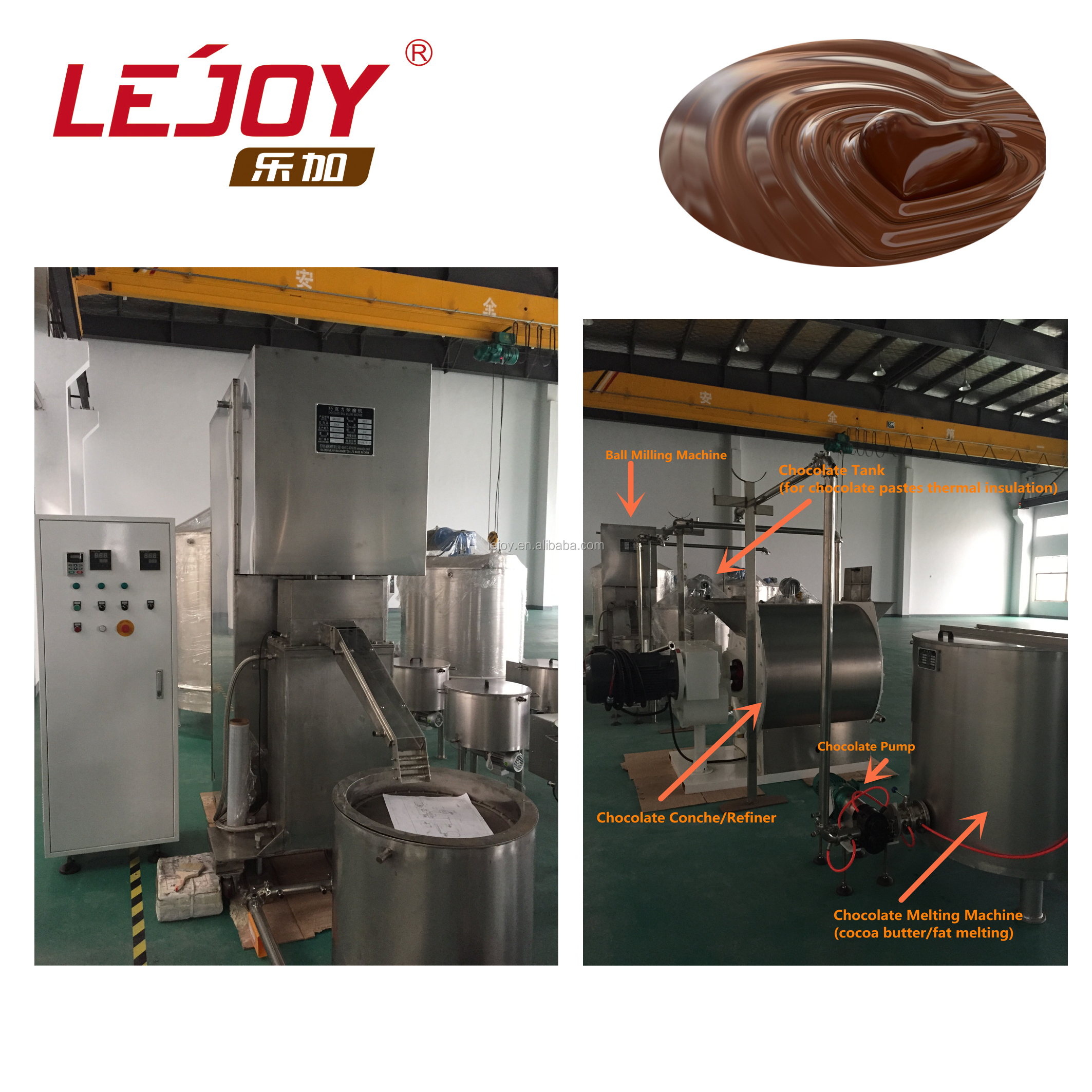

500kg Chocolate Ball Milling Machine is used for ball milling chocolate pastes. It has the advantages of high production output, low energy cost, even fineness and etc..This machine can be used along with conche or mixer, storage tank and chocolate delivery pumps to ensure continuous production and improve production efficiency.It has automatic temperature control.

Three models of chocolate ball milling machine:

Model	QMJ250	QMJ500	QMJ1000
Main Motor Power(kw)	15	44	55
Biaxial Revolution Speed (rmp/Variable Frequency Control)	250-500	250-500	70-170
Production Capaction(kg/h)	200-250	300-500	750-1000
Fineness(um)	25-20	25-20	25-20
Ball Material	Ball Bearing Steel	Ball Bearing Steel	Ball Bearing Steel
Balls Weight(kg)	180	460	1400
Machine Weight(kg)	2000	2750	5000
Outside Dimension(mm)	110012502150	12001450 2250	240015002600

Model

QMJ250

QMJ500

QMJ1000

Main Motor Power(kw)

Biaxial Revolution Speed

(rmp/Variable Frequency Control)

250-500

70-170

Production Capaction(kg/h)

200-250

300-500
