Good Performance Chocolate Ball Milling Equipment

$10000.00 - $30000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Train

Port:: Shanghai, Ningbo, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou ,China
Supply Ability:	20 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,DDP,DDU
Certificate:	SGS
HS Code:	8438200000
Transportation:	Ocean,Land,Train
Port:	Shanghai,Ningbo,Shenzhen

Product Description

Usage & Specification:

1. Control System: The machine is equipped with a digital control system that allows the operator to adjust the speed and temperature of the machine. The control system also provides real-time monitoring of the process.

2. Ball Milling Tank: The machine has a ball milling tank where the chocolate ingredients are mixed and refined. The tank is usually made of stainless steel and has a capacity of several liters.

3. Ball Milling Balls: The machine uses small steel balls to grind and refine the chocolate ingredients. The size and number of balls used depend on the size and capacity of the machine.

Three kinds of Chocolate Ball Milling Machine different dimension models manufactured by our factory:

Model	QMJ250	QMJ500	QMJ1000
Main Motor Power(kw)	15	44	55
Biaxial Revolution Speed (rmp/Variable Frequency Control)	250-500	250-500	70-170
Production Capaction(kg/h)	200-250	300-500	750-1000
Fineness(um)	25-20	25-20	25-20
Ball Material	Ball Bearing Steel	Ball Bearing Steel	Ball Bearing Steel
Balls Weight(kg)	180	460	1400
Machine Weight(kg)	2000	2750	5000
Outside Dimension(mm)	1100 X 1250 X 2150	1200 X 1450 X 2250	2400 X 1500 X 2600

Customized PU Belt Chocolate Cooling Tunnel

Main use:
The Chocolate Ball Milling used for grinding chocolate slurry with a high speed, high output, low energy consumption, small degree of uniformity, etc.

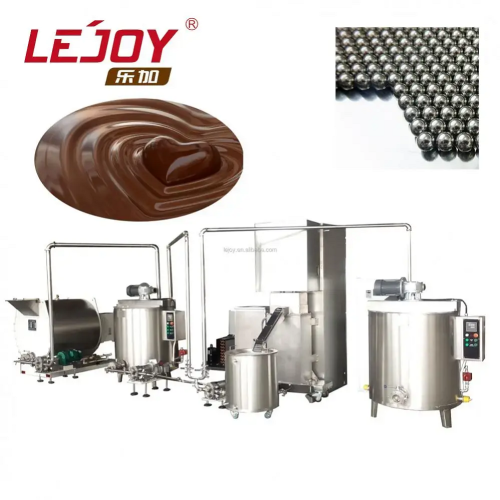

Chocolate Ball Milling Line is also applicable to grinding jam, peanut butter and other liquid of the slurry oil.

250kg Chocolate Ball Milling Machine is used for ball milling chocolate pastes.It has the advantages of high production output, low energy cost, even fineness and etc.. This machine can be used along with conche or mixer, storage tank and chocolate delivery pumps to ensure continuous production and improve production efficiency. It has automatic temperature control.
