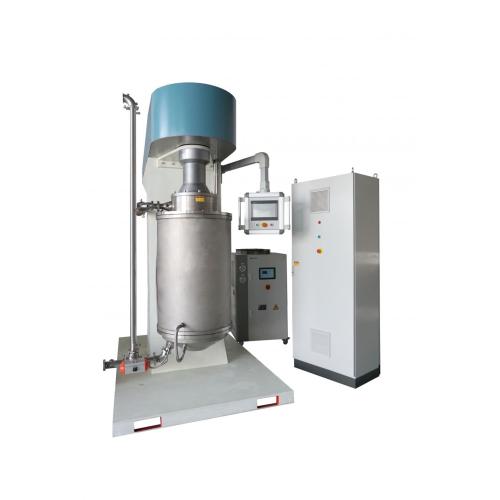

QMJ1000 Chocolate Ball Miller Machine

$10000.00 - $30000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Train

Port:: Shanghai, Ningbo, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou ,China
Supply Ability:	20 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,DDU,DDP
Certificate:	SGS
HS Code:	8438200000
Transportation:	Ocean,Land,Train
Port:	Shanghai,Ningbo,Shenzhen

Product Description

Usage & Specification:

1000kg Chocolate Ball Milling is used for ball milling chocolate pastes.It has the advantages of high production output, low energy cost, even fineness and etc.. This machine can be used along with conche or mixer, storage tank and chocolate delivery pumps to ensure continuous production and improve production efficiency. It has automatic temperature control.

QMJ1000 ball mill is used for fine grinding chocolate paste and daily chemical raw materials. Chocolate Ball Milling is an ideal equipment for highly efficient and fine Milling of Chocolate pulp and daily chemical raw materials. The fine grinding of chocolate paste is carried out by two spindles with discs to drive the alloy steel ball to rotate and grind. The fineness of the paste after grinding is 20-25um.

Chocolate Ball Milling is larger than QMJ250 and QMJ500. We can make more Chocolate in the same time, which will greatly improve our production efficiency and bring more profits to the factory.

The Chocolate Ball Milling used for grinding chocolate slurry with a high speed, high output, low energy consumption, small degree of uniformity, etc. Chocolate Ball Milling Line is also applicable to grinding jam, peanut butter and other liquid of the slurry oil.

Three kinds of Chocolate Ball Milling Machine different dimension models manufactured by our factory:

Model	QMJ250	QMJ500	QMJ1000
Main Motor Power(kw)	15	44	55
Biaxial Revolution Speed (rmp/Variable Frequency Control)	250-500	250-500	70-170
Production Capaction(kg/h)	200-250	300-500	750-1000
Fineness(um)	25-20	25-20	25-20
Ball Material	Ball Bearing Steel	Ball Bearing Steel	Ball Bearing Steel
Balls Weight(kg)	180	460	1400
Machine Weight(kg)	2000	2750	5000
Outside Dimension(mm)	1100 X 1250 X 2150	1200 X 1450 X 2250	2400 X 1500 X 2600
