QJJ1000 Fully Automatic Chocolate Bar Depositing Equipment

$100000.00 - $150000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Shanghai/ Ningbo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou,China
Supply Ability:	6 Set/Sets per Quarter
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA,DDP,DDU
Certificate:	SGS
HS Code:	8438200000
Transportation:	Ocean,Land
Port:	Shanghai/ Ningbo

Product Description

QJJ1000 Fully Automatic Chocolate Bar Depositing Machine

Product Description of Big Chocolate Bar Chcocolate Depositing Machine

Model	Production Capacity Piece of Mold/min	Whole Machine Power(kW)	Number of Mold Piece	Weight (kg)	Outside Dimension (mm)
QJJ1000	6-10	49	580	8200	26800×3500×2550

Model

Production Capacity

Piece of Mold/min

Whole Machine Power(kW)

Number of Mold

Piece

Weight

(kg)

Outside Dimension

(mm)

QJJ1000

6-10

580

8200

26800×3500×2550

Usage:

QJJ1000 Chocolate Depositing Machine is used for the depositing of big chocolate bars at a rationed amount equalor less than 1000 grams.This machine has fully automatic functions of moulds pre-heating,depositing,moulds vibrating,cooling,de-moulding and conveying.It is also suitable for small chocolate bars production.

Other chocolate depositing machine models manufactured by our factory:

Models	QJJ175 Single Head	QJJ175 Two Heads	QJJ510 Single Head	QJJ510 Two Heads
Production Capacity (Piece of Mould/min)	6-15	6-15	6-15	6-15
Whole Machine Power (kW)	19	23	21	25
Number of Mould (Piece)	280	330	280	330
Mould Size (mm)	330×200×30	330×200×30	510×200×30	510×200×30
Machine Weight (kg)	3500	4500	4000	5000
Outside Dimension (mm)	16000×1000×1600	16000×1000×1800	16000×2000×1600	16000×1200×1800
Models	QJJ330(3+2)	QJJ510(3+2)	QJJ275(3+2)	QJJ150
Production Capacity (Piece of Mould/min)	6-15	6-15	6-15	6-10
Whole Machine Power (kW)	28	47	61	6
Number of Mould (Piece)	380	380	410	200
Mould Size (mm)	330×200×30	510×200×30	275×175×30	275×175×30
Machine Weight (kg)	5300	7000	6500	600
Outside Dimension (mm)	18000×1200×1900	19000×1300×2500	15420×5270×2100	400×520×150

Product Display and Samples

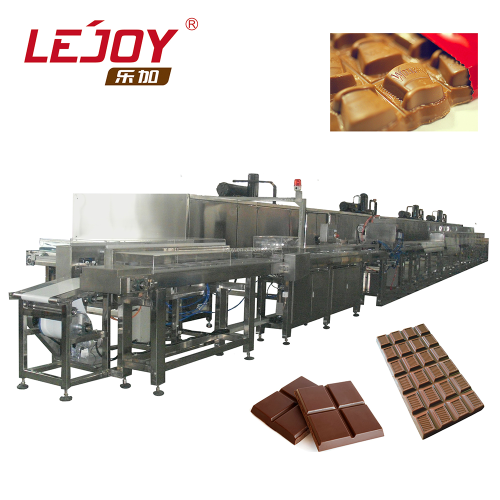

Big Chocolate Bar Chcocolate Depositing Machine
