TL Series Steel Cable Carrier
- Min. Order:
- 1 Meter
- Min. Order:
- 1 Meter
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu China |
|---|---|
| Productivity: | 2000 meters per month |
| Supply Ability: | 500 Meter/Meters per Week |
| Payment Type: | L/C,D/P,D/A,T/T,Money Gram,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| Certificate: | ISO9001; CE |
| HS Code: | 7315890000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai Port |

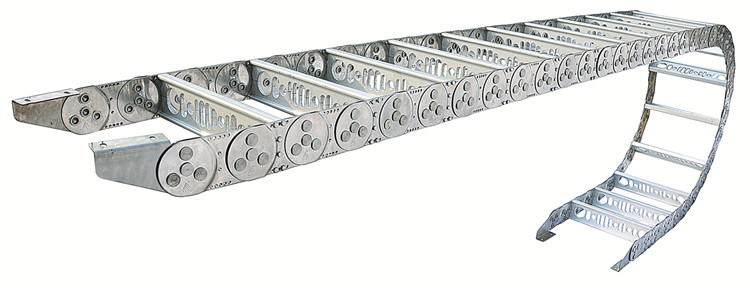

There are 11 split models for TL series of steel drag chain, they have different pitches, different dimensions and different bending radius respectively. The split model numbers of TL series of steel cable carrier are named after the length of pitch. For example, the length of pitch for model TL30 is 30mm, the length of pitch for TL45 is 45mm and the length of pitch for model TL250 is 250mm. Certainly, the inner height of each split model of steel drag chain is different from each other, and there are several options for the bending radius of each split model of steel cable carrier, pls refer to below table for the details.
The TL series of steel cable carrier steel consist of link plates , cross bars (pultruded aluminum alloy) and shaft pins (alloy steel), the chain and cables or plastic tubes have a relative motion when running, there is not distortion occurred. The steel cable carrier features reasonable structure, high strength and hardness, high flexibility, easy assembly and disassembly and high reliability; This is a heavy-duty cable carrier which is more suitable for the machines with heavy cables or tubes.
| Model | Description | Material | Color |
Inner H*W (mm) |
Outer H*W (mm) |
Bending Radius (mm) |
Pitch (mm) |
Feature |
EXW/m(USD) (without brackets) |
| TL30 | Cable chain | Steel | Chromed | 10*X | 25*(X+8) | 20 | 30 | Bridge |
34.00 plus |
| TL45 | Cable chain | Steel | Chromed | 16*X | 32*(X+12) |
50/75/90/ 115/145 |
45 | Bridge | 38.00 plus |
| TL65 | Cable chain | Steel | Chromed | 24*X | 44*(X+18) |
75/90/115/ 125/145/185 |
65 | Bridge | 57.00 plus |
| TL80 | Cable chain | Steel | Chromed | 32*X | 56*(X+18) |
100/115/125/ 145/185/200/ 250/300 |
80 | Bridge | 83.00 plus |
| TL95 | Cable chain | Steel | Chromed | 47*X | 70*(X+20) |
115/145/200/ 250/300 |
95 | Bridge | 89.00 plus |
| TL115 | Cable chain | Steel | Chromed | 58*X | 86*(X+24) |
145/200/225/ 250/300/350 |
115 | Bridge | 136.00 plus |
| TL125 | Cable chain | Steel | Chromed | 68*X | 100*(X+24) |
200/250/300/ 340/470/500/ 575/700/750 |
125 | Bridge | 166.00 plus |
| TL155 | Cable chain | Steel | Chromed | 86*X | 120*(X+26) |
200/250/300/ 350/450/500/ 600 |
155 | Bridge | 185.00 plus |
| TL180 | Cable chain | Steel | Chromed | 112*X | 144*(X+26) |
250/300/350/ 450/490/600/ 650 |
180 | Bridge | 216.00 plus |
| TL225 | Cable chain | Steel | Chromed | 154*X | 200*(X+26) |
400/450/600/ 750/800/850/ 1000 |
225 | Bridge | 269.00 plus |
| TL250 | Cable chain | Steel | Chromed | 172*X | 220*(X+28) |
400/450/500/ 600/750/800/ 1000 |
250 | Bridge | 336.00 plus |
1: Are you factory or only company?
We are a manufacturer with workshops to produce products such as cable chain, guard shield, bellow covers which help protect your machines.
2: Why we can choose you?
1) Professional-- We have worked in the this industry for more than 20 years,our products have been tested by coutless clients.
2) Relialbe -- We are a real factory, we follow principle of win-win.
3) Competitiveness -- All products are made within our factory, short links of transaction is going to save your money.
3: How about the shipping cost?
If your goods is not large, we can make delivery via express or air, if your goods is large, we will give you options on different Trade term for your selection.
4: How about the price?
Final quotation is according to receiving full description of the product you want, size, material, quantity etc.
5: How about the sample time? What about the payment?
Sample time 7-15 days after your payment received depends on different models you select.
T/T, 30% deposit, balance before shipment, we can accept flexible payment by West Union, Paypal, Credit card etc.
