professional cable chain bridge cable drag chain

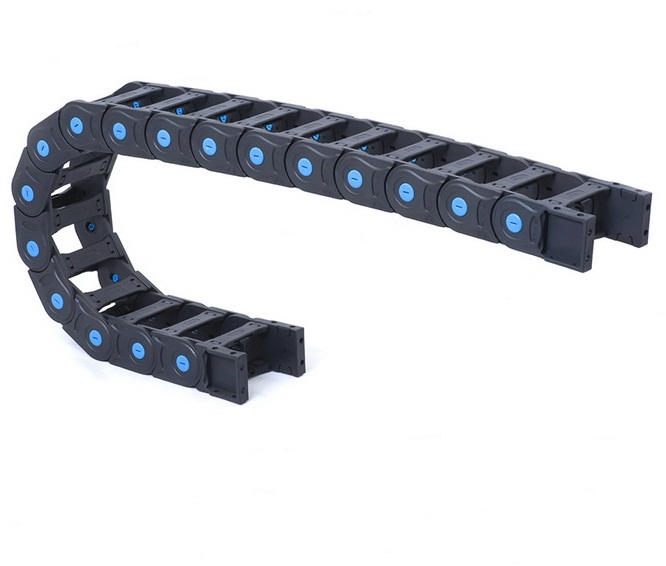

The pitch of this model of plastic cable carrier is 91mm, the inner height is 56mm and the outer height is 86.4mm. There are 8 selections for the width, inner 75mm & outer 105mm, inner 100mm & outer 130mm, inner 125mm & outer 155mm, inner 150mm & outer 180mm, inner 175mm & outer 205mm , inner 200mm & outer 230mm, inner 250mm & outer 280mm and 300mm & 330mm. This model of plastic cable carrier has many options for the bending radius, 75mm, 135mm, 150mm, 175mm, 200mm, 240mm, 250mm, 300mm, 350mm, 400mm, 450mm and 500mm respectively. This plastic drag chain is made from PA6, the nylon material is from selective suppliers who have worked with us for several years. Through long time cooperation, our company mastered the technical data and the features of the material and the suppliers also know the quality requirement of our company and the product very well. It is very helpful for keeping the stability of the cable chain and offering good products to the customers.

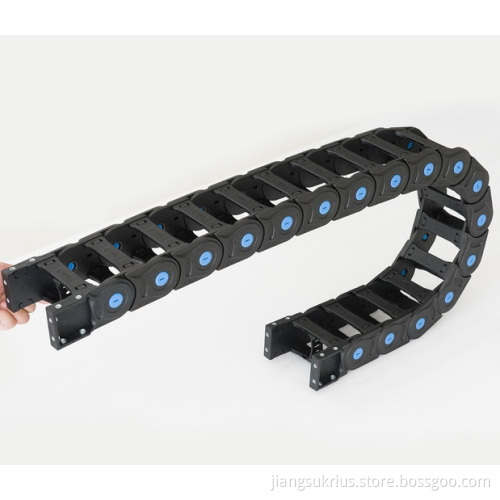

This model of plastic drag chain has a longer overhead length, it is more suitable for the laser machines requiring high speed and longer travelling distance, for example, laser cutting machine. This plastic cable carrier is a bridge type model, the connection between side pieces are cross bars. The mounting ends of this model of plastic drag chain are four-piece brackets with screw holes on different sides.

Model	Description	Material	Color	Inner H*W (mm)	Outer H*W (mm)	Bending Radius (mm)	Pitch (mm)	EXW/m(USD) (without brackets)	Net Weight/m
ZQ56	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*75	86.4*105	135/150/175/ 200/240/250/ 300/350/400/ 450/500	91	26.6	3.2
	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*100	86.4*130		91	27.62	3.4
	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*125	86.4*155		91	32.51	4.36
	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*150	86.4*180		91	34.04	4.66
	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*175	86.4*205		91	35.42	4.93
	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*200	86.4*230		91	37.65	5.26
	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*250	86.4*280		91	39.53	5.63
	Cable chain	Nylon 6 + 30% Glass Fiber	black	56*300	86.4*330		91	40.65	5.85







1: Are you factory or only company?
We are a manufacturer with workshops to produce products such as cable chain, guard shield, bellow covers which help protect your machines.

2: Why we can choose you?
1) Professional-- We have worked in the this industry for more than 20 years,our products have been tested by coutless clients.
2) Relialbe -- We are a real factory, we follow principle of win-win.
3) Competitiveness -- All products are made within our factory, short links of transaction is going to save your money.

3: How about the shipping cost?
If your goods is not large, we can make delivery via express or air, if your goods is large, we will give you options on different Trade term for your selection.

4: How about the price?
Final quotation is according to receiving full description of the product you want, size, material, quantity etc.

5: How about the sample time? What about the payment?
Sample time 7-15 days after your payment received depends on different models you select.
T/T, 30% deposit, balance before shipment, we can accept flexible payment by West Union, Paypal, Credit card etc.
