Semi-enclose Plastic Cable Carrier Drag Chain
  • Semi-enclose Plastic Cable Carrier Drag Chain
  • Semi-enclose Plastic Cable Carrier Drag Chain
  • Semi-enclose Plastic Cable Carrier Drag Chain
  • Semi-enclose Plastic Cable Carrier Drag Chain
Semi-enclose Plastic Cable Carrier Drag Chain
Semi-enclose Plastic Cable Carrier Drag Chain
Semi-enclose Plastic Cable Carrier Drag Chain
Semi-enclose Plastic Cable Carrier Drag Chain

Semi-enclose Plastic Cable Carrier Drag Chain

$6.48 - $7.46/Piece/Pieces
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 4000 meters per month
Supply Ability: 4000 meters per month
Payment Type: L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,FAS,EXW,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Certificate: CE, ISO9001
HS Code: 3926909090
Transportation: Ocean,Land,Air,Express
Product Description
Product Description

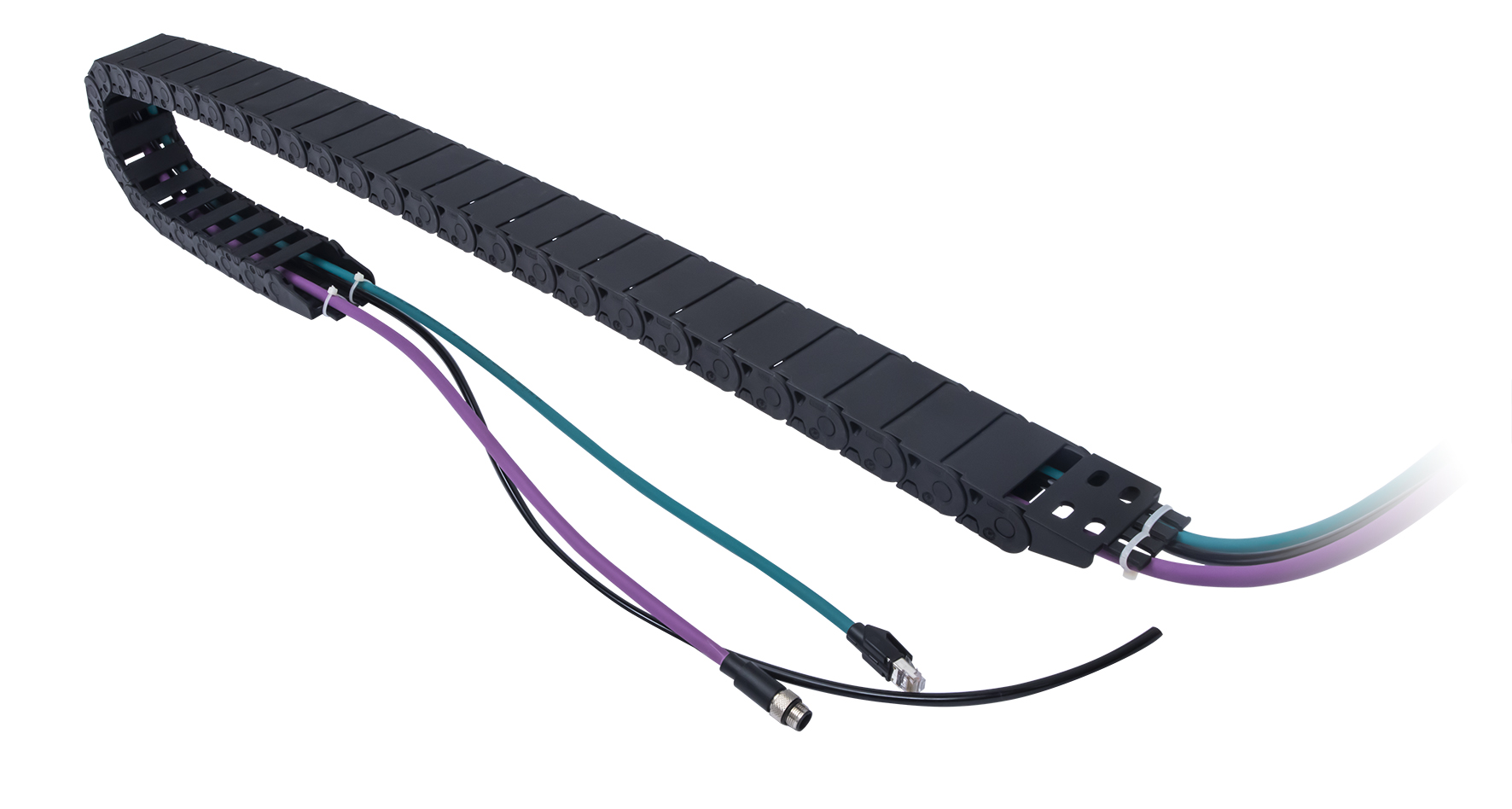

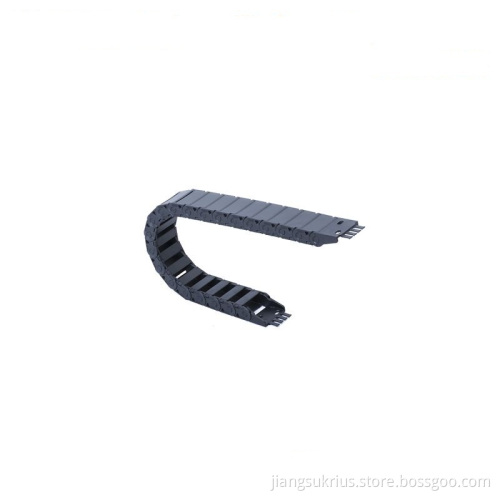

This model of plastic drag chain are with Lids and cross bars fixed on different sides. The lids along the outer radius are not removable, but the cross bars along the inner radius are removable. The mounting ends for these models of plastic drag chain are one-piece brackets. The pitch is 25mm, the inner heigh is 15mm and the outer height is 19.5mm. There are 5 selections for the inner width as 15.2mm, 20.2mm, 30.2mm, 40.2mm and 50.2mm respectively. About the bending radius, there are 3 options as 28mm, 38mm and 48mm respectively. It is a model of light-duty cable chains which are more suitable for shorter travelling and lower loadability condition, for example, automation industry.

The plastic drag chain is made from PA6, the nylon material is from selective suppliers who have worked with us for several years. Through long time cooperation, our company mastered the technical data and the features of the material and the suppliers also know the quality requirement of our company and the product very well. It is very helpful for keeping the stability of the cable chain and offering good products to the customers.


Model Description Material Color Inner H*W
(mm)
Outer H*W
(mm)
Bending Radius
(mm)
Pitch
(mm)
Feature EXW/m(USD)
(without brackets)
Net Weight/m
FN15 Cable chain Nylon 6 + 30% Glass Fibre black 15*15.2 19.5*24.8 28/38/48 25 Semi Enclosed 6.48  0.272
Cable chain Nylon 6 + 30% Glass Fibre black 15*20.2 19.5*29.8 28/38/48 25 Semi Enclosed 6.58  0.29
Cable chain Nylon 6 + 30% Glass Fibre black 15*30.2 19.5*39.8 28/38/48 25 Semi Enclosed 6.98  0.361
Cable chain Nylon 6 + 30% Glass Fibre black 15*40.2 19.5*49.8 28/38/48 25 Semi Enclosed 7.27  0.412
Cable chain Nylon 6 + 30% Glass Fibre black 15*50.2 19.5*59.8 28/38/48 25 Semi Enclosed 7.46  0.446


FN15 Semi-enclosed cable chain

FN15 Cable carrier semi-enclosed

H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain


H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain

H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain

H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain
H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain

H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain

 H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain
 H15mm*W15-50mm Mini Type Semi Enclosed Black Wire Carrier Drag Chain
